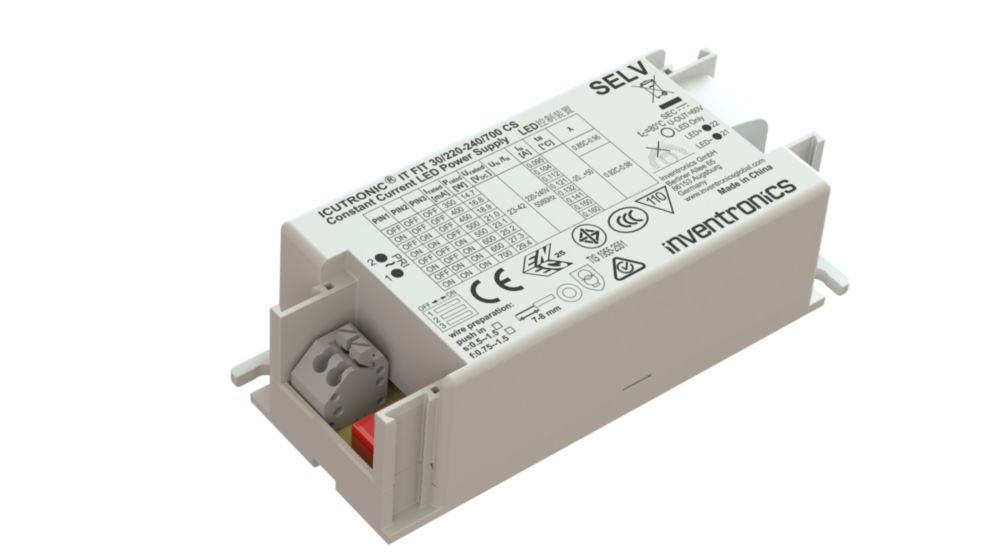

IT FIT 30/220-240/700 CS
Product family
Product family features
Supply voltage: 220…240 V
Line frequency: 50 Hz | 60 Hz
Line voltage: 198…254 V
Product family benefits
Higher quality of light thanks to low output ripple current
High flexibility due to eight different output currents
Small housing for flexible luminaire designs
High efficiency
Long lasting and high reliability
Safety ensured by Inventronics (SELV)
Areas of application
Suitable for downlights, spotlights and LED panels
Suitable for indoor SELV installations
Installation and independent mounting via Cable Clamp Kit possible
Ecodesign regulation information:
Intended for use with LED modules.
The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.
Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.
Applicable regions
APAC (excl. China, India, Japan)
CHINA
EUROPE
INDIA
MEA
SOUTH AMERICA
Approval marks
CE, CCC, RCM, UKCA, ENEC 25
Find technical data and additional assets in our datasheet
Product Datasheet (metric units)

Technical data

Electrical data

Nominal input voltage220…240 V
Mains frequency50/60 Hz
Input voltage AC198…264 V1)
Nominal input current at 230 V0.160 A
Total harmonic distortion< 10 %2)
Power factor λ0.78C...0.983)
Efficiency in full-load90 %4)
Device power loss3.3 W5)
Networked standby powernot relevant
Inrush current23 A6)
Max. ECG no. on circuit breaker 10 A (B)36
Max. ECG no. on circuit breaker 16 A (B)57
Surge capability (L-N)1 kV7)
Surge capability (L/N-Ground)2 kV8)
Protective conductor current<0.7 mA
Nominal output voltage23…42 V
U-OUT (working voltage)60 V
Nominal output current350 mA / 400 mA / 450 mA / 500 mA / 550 mA / 600 mA / 650 mA / 700 mA9)
Default output current700 mA
Output current tolerance±5 %
Output ripple current (100 Hz)< 3 %10)
Output PSTLM≤1
Output SVM≤0.4
Nominal output power8.05…29.4 W
Maximum output power29.4 W
Galvanic isolation primary/secondarySELV

1) Permitted voltage range

2) At full load, 230 V, 50 Hz / see graphs

3) Full load at 230 V / 50 Hz

4) at 230 V, 50 Hz

5) At 230 V, Input power 32.7 W max.

6) twidth = 50 µs (measured at 50 % Ipeak)

7) L/N

8) L/N – PE acc to EN 61547 Cluase 5.7

9) ±5%

10) Ripple average at 100 Hz

Dimensions & weight

Product weight99.50 g
Length97.0 mm
Width43.0 mm
Height29.5 mm
Mounting hole spacing, length88.0 mm
Mounting hole spacing, width34.0 mm
Cable cross-section, input side0.5…1.5 mm²
Cable cross-section, output side0.5…1.5 mm²
Wire preparation length, input side7…8 mm
Wire preparation length, output side7…8 mm
Cable/wire length, output side2000 mm

Colors & materials

Casing materialPlastic
Product colorWhite

Temperatures & operating conditions

Ambient temperature range-20…+50 °C
Maximum temperature at tc test point80 °C1)
Max.housing temperature in case of fault110 °C
Temperature range at storage-20…80 °C2)
Permitted rel. humidity during operation5…85 %3)

1) Measured on tc point indicated on the product label.

2) Cool down before operating

3) Maximum 56 days/year at 85 %

Lifespan

ECG lifetime50000 h / 100000 h1)

1) At maximum Tc = 80°C / 10% failure rate / At maximum Tc = 70°C / 10% failure rate

Additional product data

EncapsulatedNo

Capabilities

Programming interfaceDipswitch
DimmableNo
Max. cable length to lamp/LED module2.0 m1)
Suitable for fixtures with prot. classI / II
Type of connection, input sidePush terminal
Type of connection, output sidePush terminal
Suitable for through-wiringYes with optional cable clamp
Number of channels1
Overheating protectionAutomatic reversible
Overload protectionAutomatic reversible
Short-circuit protectionAutomatic reversible
Intended for no-load operationNo
No-load proofYes

1) Output wires must be routed as close as possible to each other

Programming

Programming deviceDIPswitch
Tuner4TRONICnot relevant
Tuner4TRONIC Field Appnot relevant
Box programmingnot relevant

Certificates & standards

Approval marks – approvalCE / CCC / RCM / UKCA / ENEC 25
StandardsIEC 61347-1 / IEC 61347-2-13 / IEC 62384 / CISPR 15 / IEC 61000-3-2 / IEC 61000-3-3 / IEC 61547
Type of protectionIP20

Logistical data

Commodity code85044083900
Applicable regionAPAC (excl. China, India, Japan) / CHINA / EUROPE / INDIA / MEA / SOUTH AMERICA

Logistical Data

Product codeProduct descriptionPackaging unit (Pieces/Unit)Dimensions (length x width x height)VolumeGross weight
6977078991773 INVENTRONICSIT FIT 30/220-240/700 CSShipping carton box 50 Pieces225 x 214 x 180 mm8.67 dm³105.60 g

Accessories Optional

Product descriptionAccessory nameAccessory code
IT FIT 30/220-240/700 CSOT CABLE CLAMP D-STYLE4052899077904
IT FIT 30/220-240/700 CSOT CABLE CLAMP D-STYLE4062172345507
IT FIT 30/220-240/700 CSOT CABLE CLAMP D-STYLE4050732420573
IT FIT 30/220-240/700 CSOT CABLE CLAMP D-STYLE6977770432086
IT FIT 30/220-240/700 CSOT CABLE CLAMP D-STYLE TL4062172349185
IT FIT 30/220-240/700 CSOT CABLE CLAMP D-STYLE TL6977770432109
Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration:
01-09-2026
Declaration No. in SCIP database:
In work
Product code:
6977078991773
Predecessor:
4062172326360
