Product family features
Easy to install and flexible cable clamps
Separate cable clamps for primary and secondary side
Pre-fixed, captive screws
Through-looping (TL version - max. 10A mains through wiring current)
OT CABLE CLAMP D-STYLE
Product family
Product family benefits
Simple and quick cable mounting
Sufficient space for cable connection
Cost-effective and space-saving solution (TL version)
Free cable connection thanks to open flaps
Immediate installation thanks to pre-assembled cable clamps
Areas of application
Downlights, flat luminaires
Suitable for different cable types
Suitable for indoor installations
Applicable regions
APAC (excl. China, India, Japan)
CHINA
EUROPE
INDIA
MEA
SOUTH AMERICA
Find technical data and additional assets in our datasheet
Technical data
Electrical data
| System wattage | 0 W |
|---|

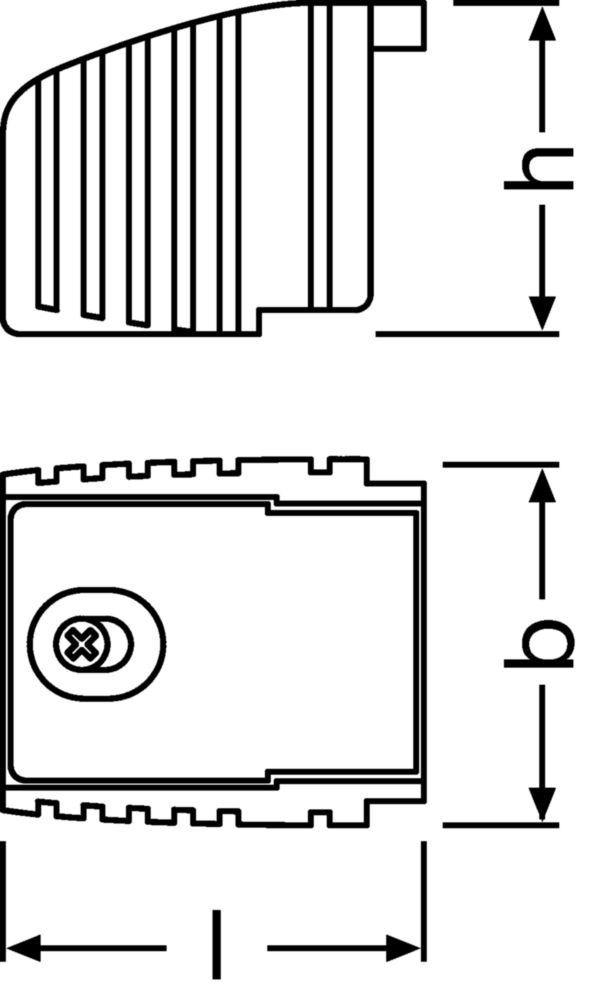

Dimensions & weight
| Length | 38.5 mm |
|---|---|
| Height | 29.5 mm |
| Width | 33.0 mm |
| Product weight | 14.50 g |
| Mounting hole spacing, length | not relevant mm |
| Mounting hole spacing, width | not relevant mm |
Temperatures & operating conditions
| Permitted rel. humidity during operation | 5…85 %1) |
|---|---|
| Temperature range at storage | -40…+85 °C |
1) Maximum 56 days/year at 85 %
Certificates & standards
| Type of protection | n/a |
|---|
Logistical data
| Commodity code | 39269097900 |
|---|---|
| Applicable region | APAC (excl. China, India, Japan) / CHINA / EUROPE / INDIA / MEA / SOUTH AMERICA |
Logistical Data
| Product code | Product description | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Volume | Gross weight |
|---|---|---|---|---|---|
| 6977770432086 INVENTRONICS | OT CABLE CLAMP D-STYLE | Shipping carton box 40 Pieces | 175 x 82 x 134 mm | 1.92 dm³ | 20.63 g |
Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration:
01-09-2026
Declaration No. in SCIP database:
In work
Product code:
6977770432086
Predecessor:
4062172345507
