Product family features

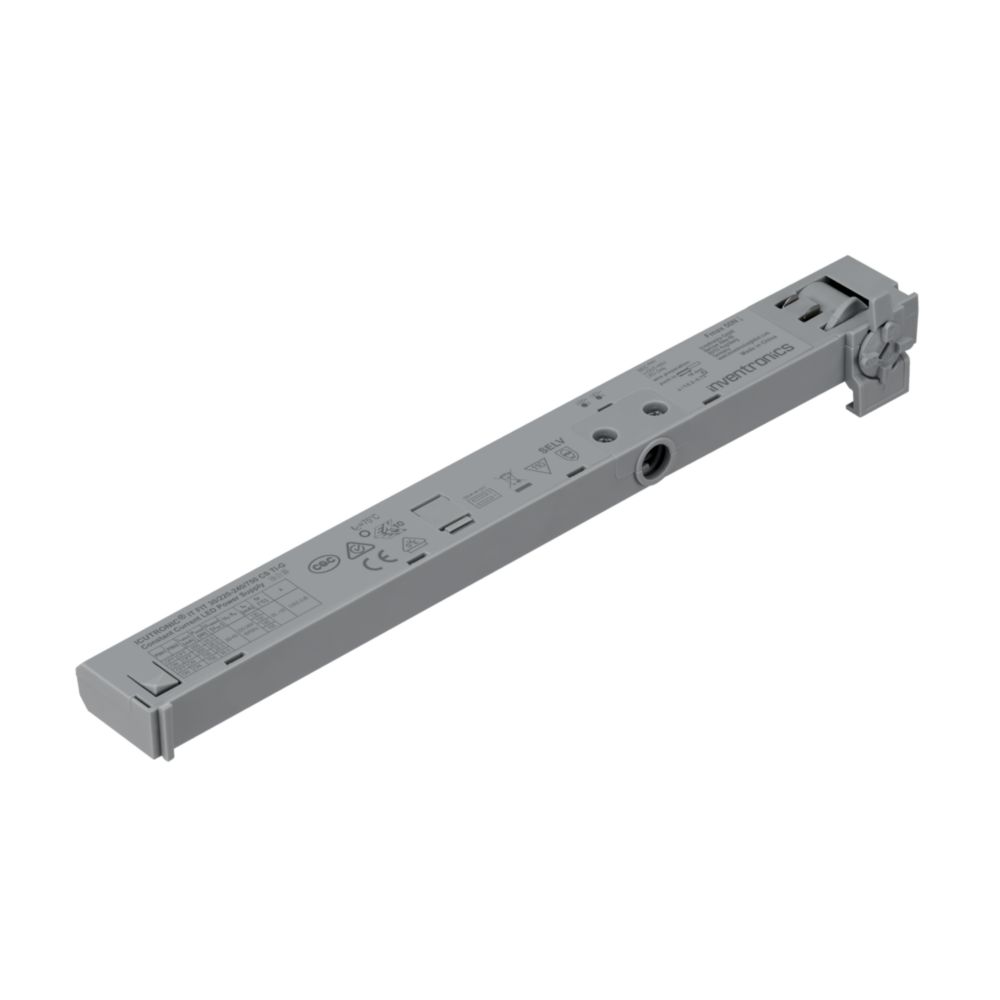

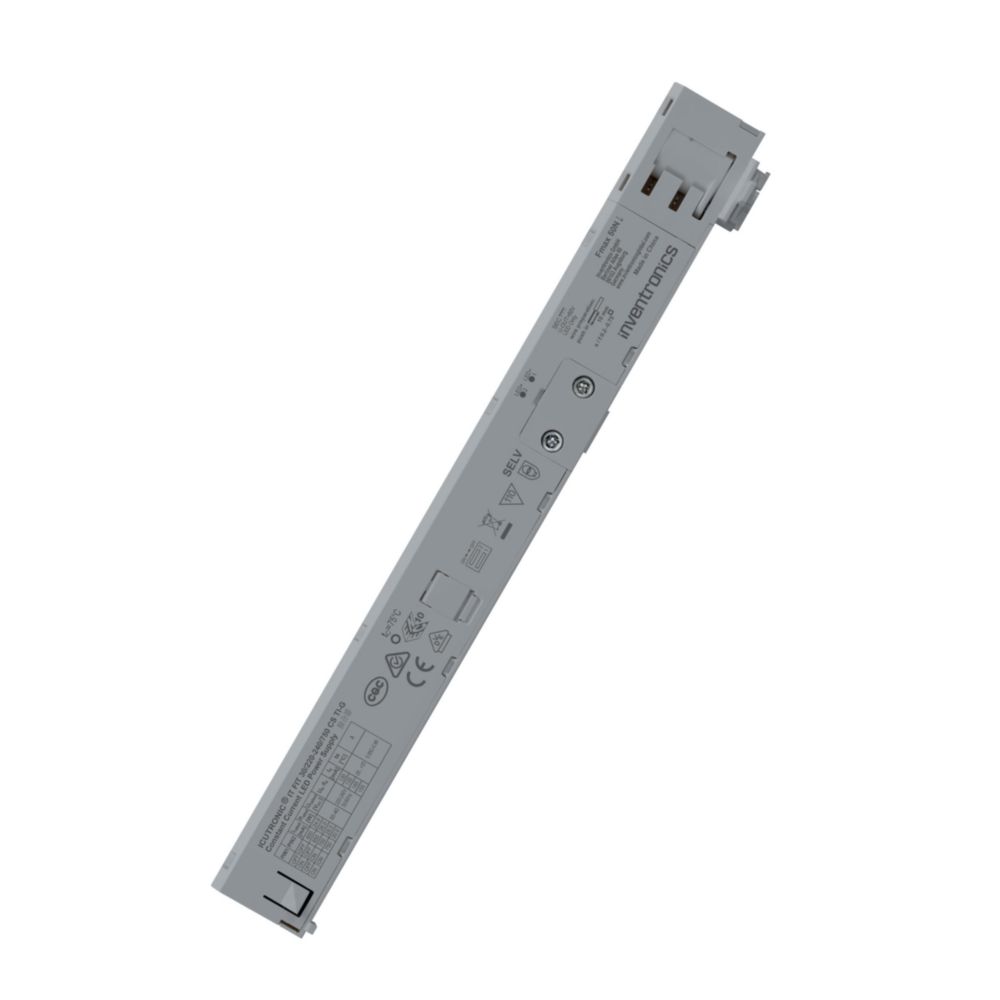

SELV LED driver in track adaptor
Installed completely inside the track system
Dip-switches for easy output current selection
Lifetime 50 000 h at tc max
Low THD <10% @ full load
Low LF-ripple < 3%
IT FIT 30/220-240/750 CS TI-G (NEW)
Product family
Product family benefits
Short housing for minimum distance between spotlights
Invisible when installed in track systems
High light quality due to low ripple current
High efficiency (up to 91.5%)
High flexibility due to four different output currents per type
SELV system
Areas of application
Track lights
Shops and hospitality: retail, hotels, restaurants
Suitable for luminaires of protection class II
Suitable for three circuits system
Ecodesign regulation information:
Intended for use with LED modules.
The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.
Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.
Find technical data and additional assets in our datasheet
Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration:
10-10-2025
Candidate List Substance 1:
Lead
CAS No. of substance 1:
7439-92-1
Safe Use Instruction:
The identification of the Candidate List substance is sufficient to allow safe use of the article.
Declaration No. in SCIP database:
54f8e66a-9e5b-4f9e-a9bd-a6d92dcbee6d
Product code:
6977770438958
