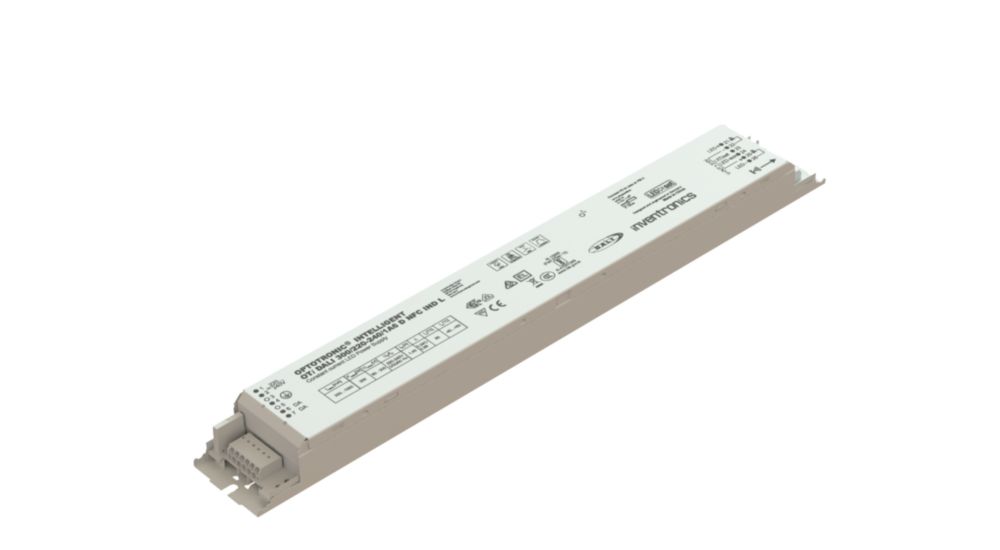

Product family features
Line frequency: 0 Hz | 50 Hz | 60 Hz
Versatile scope of application thanks to an output power range of up to 300 W
Supply voltage: 220…240 V
Available with output current range: up to 1,000 mA
Constant Lumen Output (CLO)
Integrated customizable thermal management (Driver Guard)
Non-isolated drivers
DALI-2 certified (Part -101,-102, -207, -251, -252, -253)
Product family benefits
Fully programmable via T4T software (NFC, DALI Interface)
Lifetime: up to 100,000 h (temperature at Tc = 75 °C, max. 10 % failure rate)
High light quality: 1…100% amplitude dimming and <1% output ripple current
Wide operating temperature range: -25…+55 °C
High surge protection: up to 4 kV (L-N) / 4 kV (L/N-PE)
Integrated inrush current limiter
Very high efficiency (up to 96%)
Fulfill safety requirement due to overload, overtemperature, Hot Plug protection
Very low standby power consumption: < 0.25 W
Versatile scope of application due to DALI Technology:
Easy to use in corridors and restrooms because of three-level Corridor function
Touch DIM application: easy to control via pushbutton or sensor
Energy efficient Touch DIM operation due to automatic switch-off at sufficient residual light
Suitable for emergency Installations (acc. to EN 60598-2-22 and IEC 61347-2-13, appendix J) thanks to DC detection (0 Hz, pulsating DC), on/off switchable
Feedback of power consumption and operating hours (Fit for SMART GRID)
Suitable for buildings according to EPBD/BREEAM/LEED due to automatic Constant Lumen Output setting
Luminaire information for easy maintenance
Advanced luminaire/driver data (power, energy, operating hours…) for analytics
Areas of application
Linear lighting solutions for industry, storage areas and retail applications
Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
Suitable for installation in emergency lighting systems according to EN 60598-2-22
Suitable for luminaires of protection class I
Ecodesign regulation information:
Intended for use with LED modules.
The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.
Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.
