B NLC 220-240 LS/PD HB
Product family features
Presence detection via passive IR element
Detection height up to 14 meter
Bluetooth NLC enabled by Silvair
Suitable for up to 16 DALI-2 LED drivers (Part - 207) in broadcast mode
Product family benefits
Ambient light dependent control and presence detection
Shutter included to optimize sensor detection
Simplified mounting for flush device boxes
Motion detection height up to 14 m
Areas of application
Suitable for high installation heights
Entrance halls
Industry
Production halls
Equipment / Accessories
Surface and recessed ceiling integration via Sensor 220-240 LS/PD KIT
Applicable regions
APAC (excl. China, India, Japan)
CHINA
EUROPE
INDIA
MEA
Approval marks
CE, ioXT, PSA
Find technical data and additional assets in our datasheet
Product Datasheet (metric units)

Technical data

Electrical data

Nominal voltage220…240 V
Mains frequency50...60 Hz
Maximum TX power+4 dBm
Guaranteed supply current (DALI)16 mA
Maximum supply current (DALI)57 mA
Average input current14 mA
Radio frequency2.4 GHz
Wireless protocolBluetooth NLC enabled by Silvair
Wireless range20 m line of sight
Standby power< 0.5 W
System wattage1.00 W

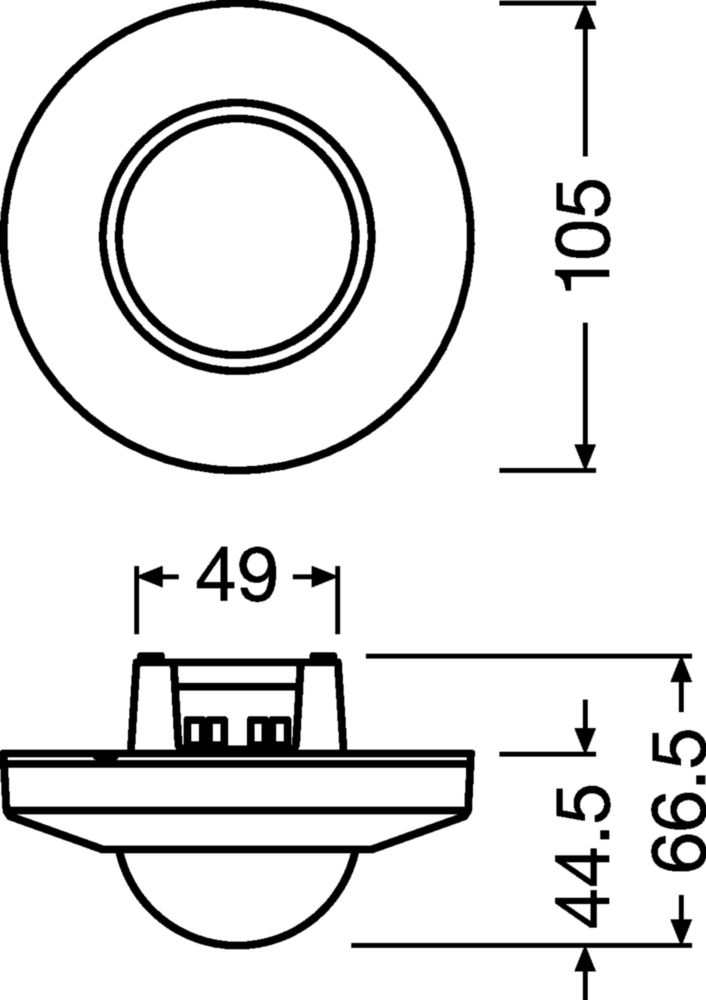

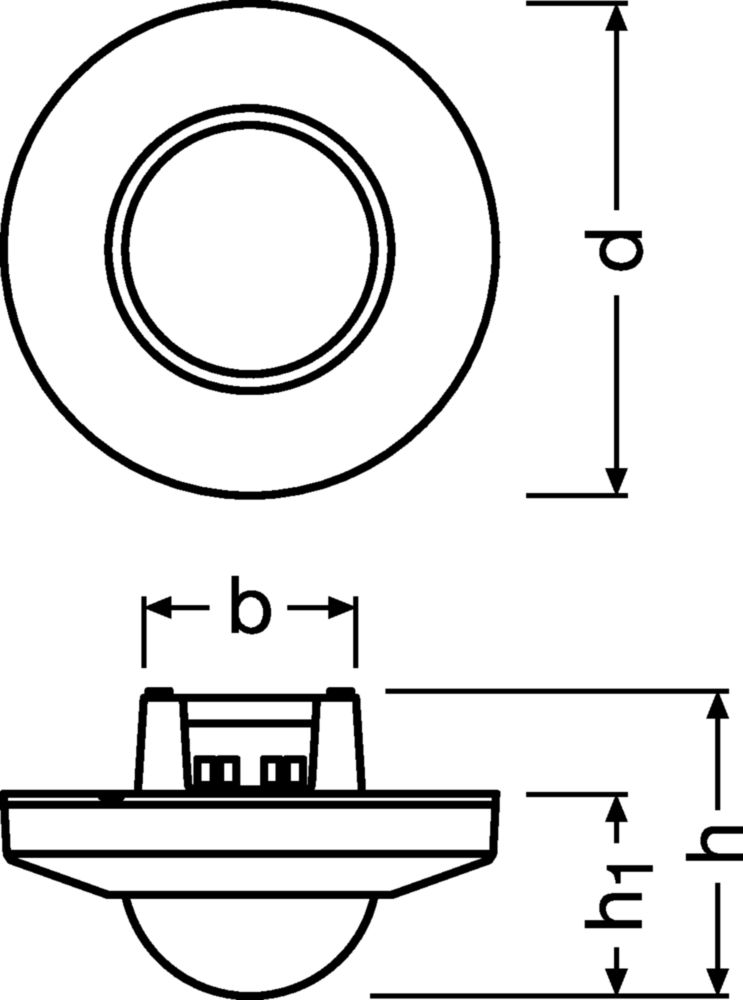

Dimensions & weight

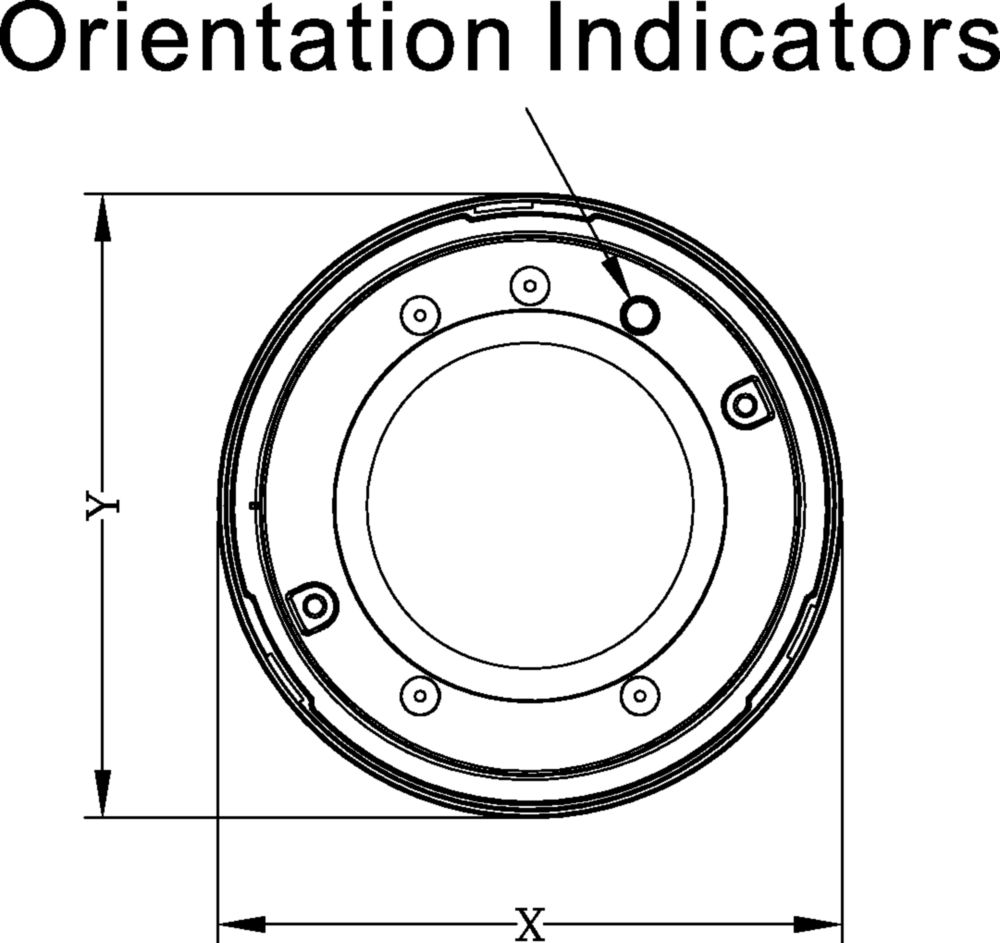

Mounting hole spacing, diagonal68…80 mm
Product weight208.22 g
Wire preparation length, output side6…8 mm
Wire preparation length, input side6…8 mm
Cable cross-section, output side1.0…2.5 mm²
Cable cross-section, input side1.0…2.5 mm²
Length110.0 mm
Width110 mm
Height66.5 mm
Diameter105.0 mm

Colors & materials

Product colorWhite

Temperatures & operating conditions

Maximum temperature at tc test point75 °C
Ambient temperature range-20…+50 °C
Temperature range at storage-20…70 °C
Permitted rel. humidity during operation0…90 %
Permitted relative humidity at storage0…90 %

Lifespan

Lifespan50000 h1)

1) At Tc max

Capabilities

Operating range, light sensor10…1500 lx
Detection angle40 °
Number of control outputs11)
Dimming interfaceDALI-2
Maximum installation height14 m
Type of sensorDaylight / PIR
DimmableYes
Type of installationOn-top ceiling mounting
CompatibilityWorks with HubSense
Control outputDALI-2
Status IndicatorBlue: Network status2)
ResetManual
Number of connected drivers16
Control interfaceBluetooth NLC
Number of supported push buttons4
Detection angle (Light sensor)+/- 30°
Detection angle (PIR)+/- 55°

1) DALI-2 LED Driver (Part-207), broadcast

2) see additional product information

Certificates & standards

Approval marks – approvalCE / ioXT / PSA
Protection class2
Type of protectionIP201)
StandardsEN 55015 / EN 61347-2-11 / EN 61547 / EN 62479 / ETSI EN 300 328 / ETSI EN 301 489-17 / ETSI EN 301 489 - 1 / EN 61347-2-1 / IEC 62386-101 / IEC 62386-103 / EN 62493

1) with surface mount box IP54

Logistical data

Applicable regionAPAC (excl. China, India, Japan) / CHINA / EUROPE / INDIA / MEA

Equipment / Accessories

Logistical Data

Product codeProduct descriptionPackaging unit (Pieces/Unit)Dimensions (length x width x height)VolumeGross weight
6977078990424 INVENTRONICSB NLC 220-240 LS/PD HBShipping carton box 24 Pieces525 x 390 x 215 mm44.02 dm³300.39 g
Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration:
01-09-2026
Declaration No. in SCIP database:
In work
Product code:
6977078990424
Predecessor:
4062172161169
