Product family features
Presence detection via passive IR element
Detection height up to 4 meter
Bluetooth NLC enabled by Silvair
Works with Hubsense
Suitable for up to 16 DALI-2 LED drivers (Part - 207) in broadcast mode
B NLC 220-240 LS/PD CI
Product family benefits
Ambient light dependent control and presence detection
Shutter included to optimize sensor detection
Simplified mounting for flush device boxes
Large motion detection range
Areas of application
Open offices
Individual offices
Conference rooms
Classrooms
Storage and break areas
Stairways
Sanitary areas
Equipment / Accessories
Surface and recessed ceiling integration via Sensor 220-240 LS/PD KIT
Applicable regions
APAC (excl. China, India, Japan)
CHINA
EUROPE
INDIA
MEA
Approval marks
CE, ioXT, PSA
Find technical data and additional assets in our datasheet
Technical data
Electrical data
| Nominal voltage | 220…240 V |
|---|---|
| Mains frequency | 50…60 Hz |
| Maximum TX power | +4 dBm |
| Guaranteed supply current (DALI) | 16 mA |
| Maximum supply current (DALI) | 57 mA |
| Average input current | 14 mA |
| Radio frequency | 2.4 GHz |
| Wireless protocol | Bluetooth NLC enabled by Silvair |
| Wireless range | 20 m line of sight |
| Standby power | < 0.5 W |
| System wattage | 1.00 W |

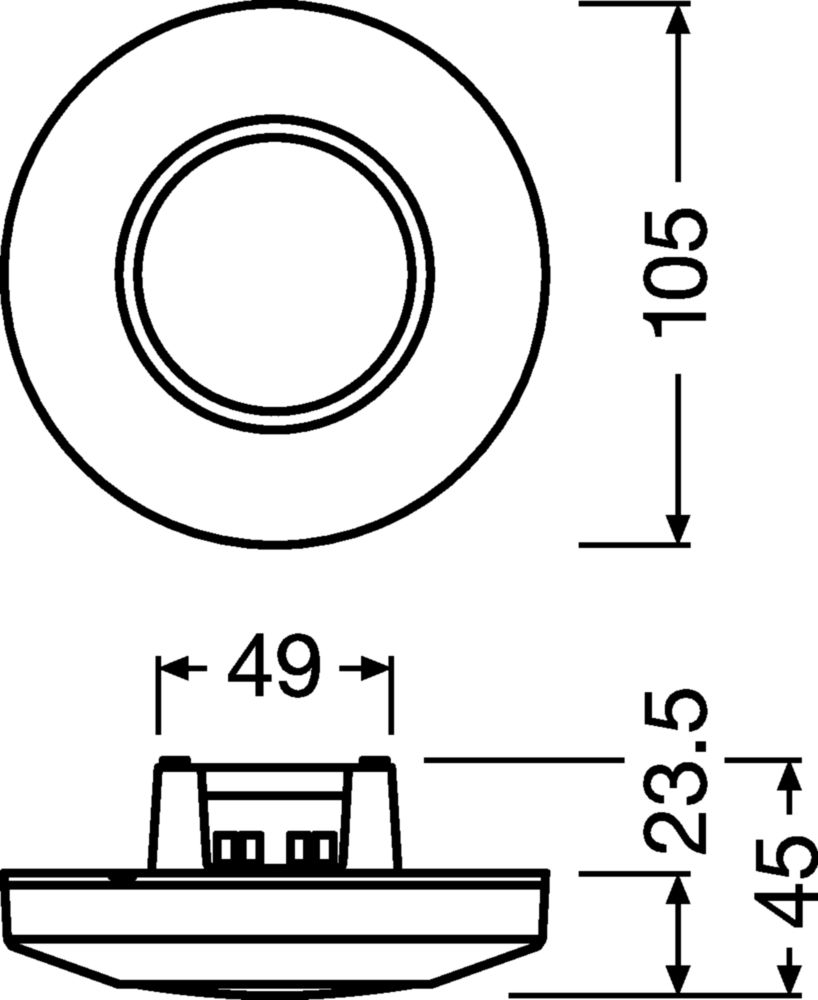

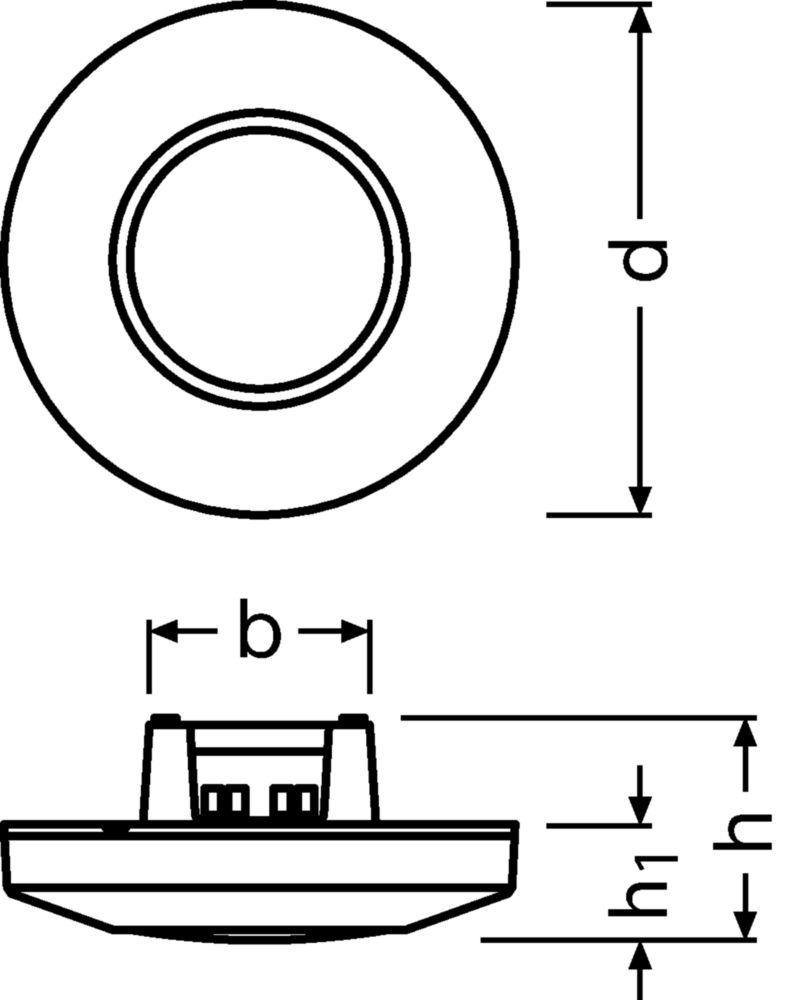

Dimensions & weight
| Mounting hole spacing, diagonal | 68…80 mm |
|---|---|
| Product weight | 182.58 g |
| Wire preparation length, output side | 6…8 mm |
| Wire preparation length, input side | 6…8 mm |
| Cable cross-section, output side | 1.0…2.5 mm² |
| Cable cross-section, input side | 1.0…2.5 mm² |
| Length | 110.0 mm |
| Width | 110.0 mm |
| Height | 45.0 mm |
| Diameter | 105.0 mm |
Colors & materials
| Product color | White |
|---|
Temperatures & operating conditions
| Maximum temperature at tc test point | 75 °C |
|---|---|
| Ambient temperature range | 0…+50 °C |
| Temperature range at storage | -20…70 °C |
| Permitted rel. humidity during operation | 0…90 % |
| Permitted relative humidity at storage | 0…95 % |
Lifespan
| Lifespan | 50000 h1) |
|---|
1) At Tc max
Capabilities
| Operating range, light sensor | 10…1500 lx |
|---|---|
| Detection angle | 90 ° |
| Number of control outputs | 11) |
| Dimming interface | DALI-2 |
| Maximum installation height | 4 m |
| Type of sensor | Daylight / PIR |
| Dimmable | Yes |
| Type of installation | On-top ceiling mounting |
| Compatibility | Works with HubSense |
| Control output | DALI-2 |
| Status Indicator | Blue: Network status2) |
| Reset | Manual |
| Number of connected drivers | 16 |
| Control interface | Bluetooth NLC |
| Number of supported push buttons | 4 |
| Detection angle (Light sensor) | +/- 30° |
| Detection angle (PIR) | +/- 55° |
1) DALI-2 LED Driver (Part-207), broadcast
2) see additional product information
Certificates & standards
| Approval marks – approval | CE / ioXT / PSA |
|---|---|
| Protection class | 2 |
| Type of protection | IP20 |
| Standards | EN 55015 / EN 61347-2-11 / EN 61547 / EN 62479 / ETSI EN 300 328 / ETSI EN 301 489-17 / ETSI EN 301 489 - 1 / EN 61347-2-1 / IEC 62386-101 / IEC 62386-103 / EN 62493 |
Logistical data
| Applicable region | APAC (excl. China, India, Japan) / CHINA / EUROPE / INDIA / MEA |
|---|
Equipment / Accessories
Logistical Data
| Product code | Product description | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Volume | Gross weight |
|---|---|---|---|---|---|
| 6977078990400 INVENTRONICS | B NLC 220-240 LS/PD CI | Shipping carton box 24 Pieces | 525 x 390 x 215 mm | 44.02 dm³ | 274.75 g |
Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration:
01-09-2026
Declaration No. in SCIP database:
In work
Product code:
6977078990400
Predecessor:
4062172161145
