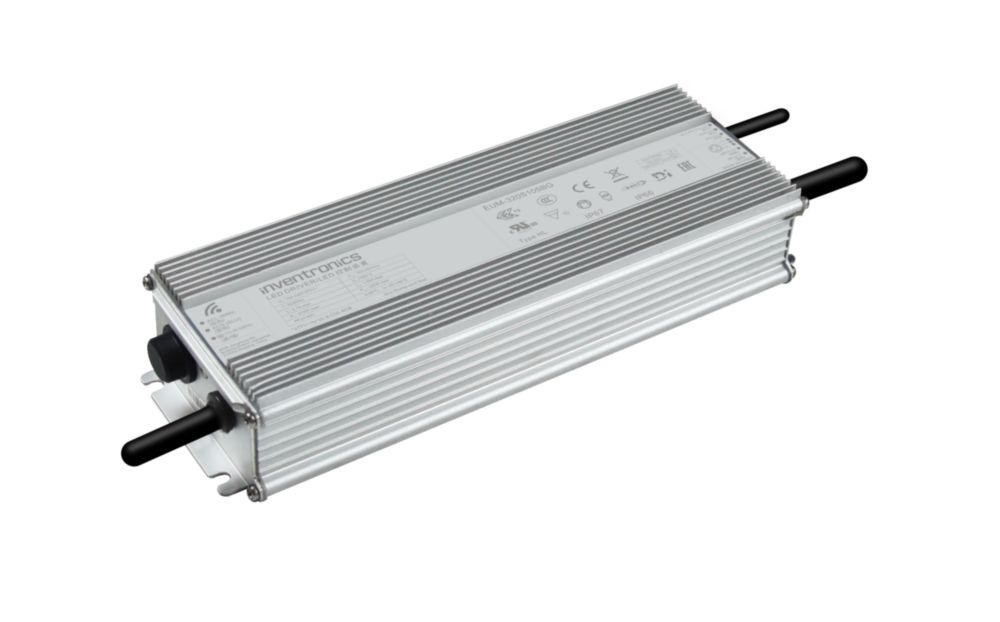

Name: EUM-320S105BG
Brand: Inventronics
Availability: InStock

Product family features
 Full Power at Wide Output Current Range (Constant Power)
 Wireless Programming via Near Field Communication (NFC)
 DALI-2 D4i Certified (Part 251, 252, 253)
 Integrated 16Vdc Bus Power Supply based on DALI-2
 Always-On Auxiliary Power: 24Vdc, 125mA, 3W (Transient Peak Power up to 10W)
 Dim-to-Off with Standby Power ≤ 0.5W
 Integrated Power Monitoring with High Accuracy up to ±1%
 3-Timer-Modes Dimmable
 Output Lumen Compensation
 End-of-Life Indicator
 Input Surge Protection: DM 6kV, CM 10kV
 All-Around Protection: IUVP, IOVP, OVP, SCP, OTP
 IP66/IP67 and UL Dry/Damp/Wet Location
 Suitable for Luminaires with Protection Class I

Product family benefits
 Operates from 90-305Vac input with excellent power factor
 Constant-current, programmable and IP66/IP67 rated for multiple applications
 High efficiency and compact metal case enables optimal thermal performance
 Protected against surge, overvoltage, short circuit, over temperature.
 Dimming control supports two-way communication via DALI-2 and complies with D4i
 Thermal Sensing and Protection for LED Module

Areas of application

Street and urban lighting

Industry

Suitable for luminaires of protection class I
