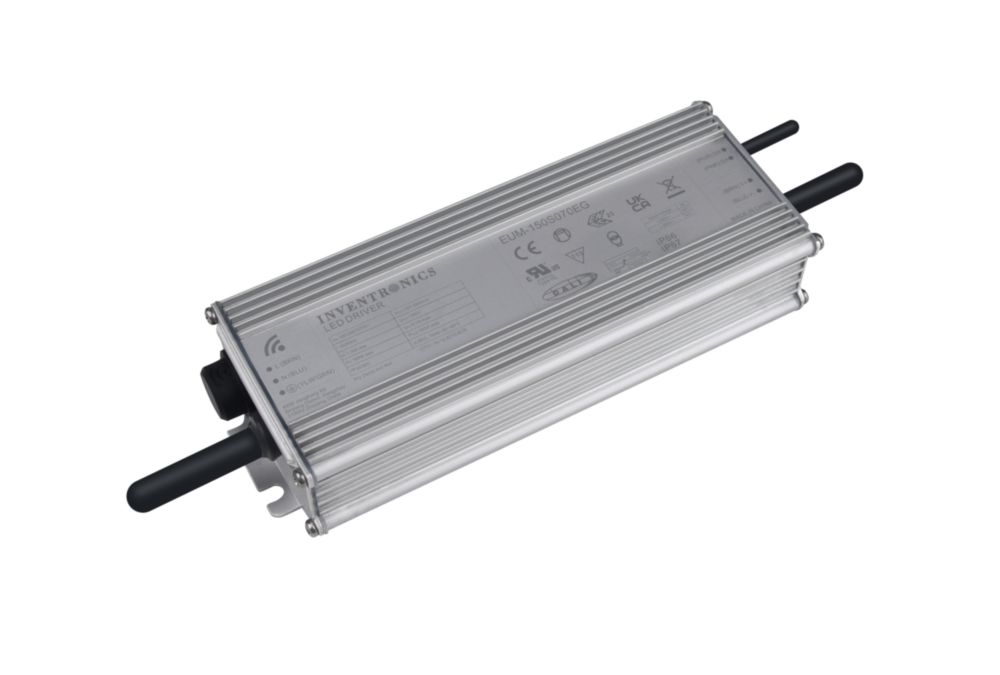

Name: EUM-150S105EE
Brand: Inventronics
Availability: InStock

Product family features
 Full Power at Wide Output Current Range (Constant Power)
 Adjustable Output Current (AOC) with NFC
 DALI-2 Certified (Part 251, 252, 253)
 3-Timer-Modes Dimmable
 Dim-to-Off with Standby Power ≤ 0.5W
 Integrated Power Monitoring with High Accuracy up to ±1%
 Output Lumen Compensation
 End-of-Life Indicator
 Input Surge Protection: DM 4kV, CM 6kV (up to 50W)
 Input Surge Protection: DM 6kV, CM 10kV (above 50W)
 All-Around Protection: IUVP, IOVP, OVP, SCP, OTP
 IP66/IP67 and UL Dry/Damp/Wet Location
 Suitable for Luminaires with Protection Class I (EUM EG)
 Suitable for Luminaires with Protection Class II (EUM EE)

Product family benefits
 Operates from 90-305Vac input with excellent power factor
 Constant-current, programmable and IP66/IP67 rated for multiple applications
 High efficiency and compact metal case enables optimal thermal performance
 Protected against surge, overvoltage, short circuit, over temperature.
 Dimming control supports two-way communication via DALI-2

Areas of application

Street and urban lighting

Industry

Suitable for luminaires of protection class I (EUM EG)

Suitable for luminaires of protection class I and II (EUM EE)
