Product family features
Available with color temperature: 2,200 K, up to 4000 K
Available with CRI > 70 and CRI > 80
Initial color consistency: ≤ 5 SDCM
Average lifetime (L80 B10): up to 100,000 h (temperature up to Tc = 90 °C)
Maximum temperature at tc: 95 °C (according to IEC 62717)
Operating range: -40°C to +70°C
Maximum working voltage 600 V for the system

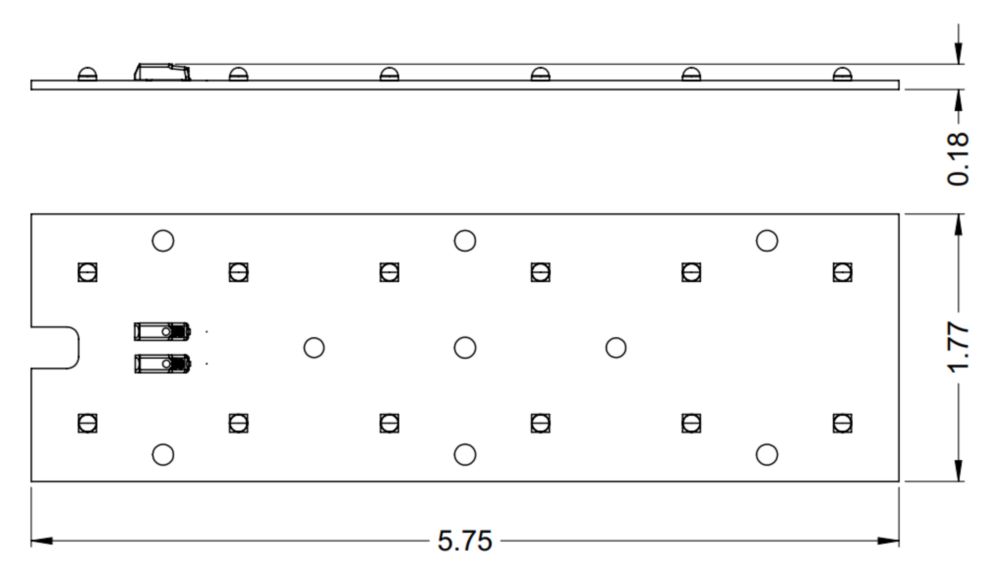

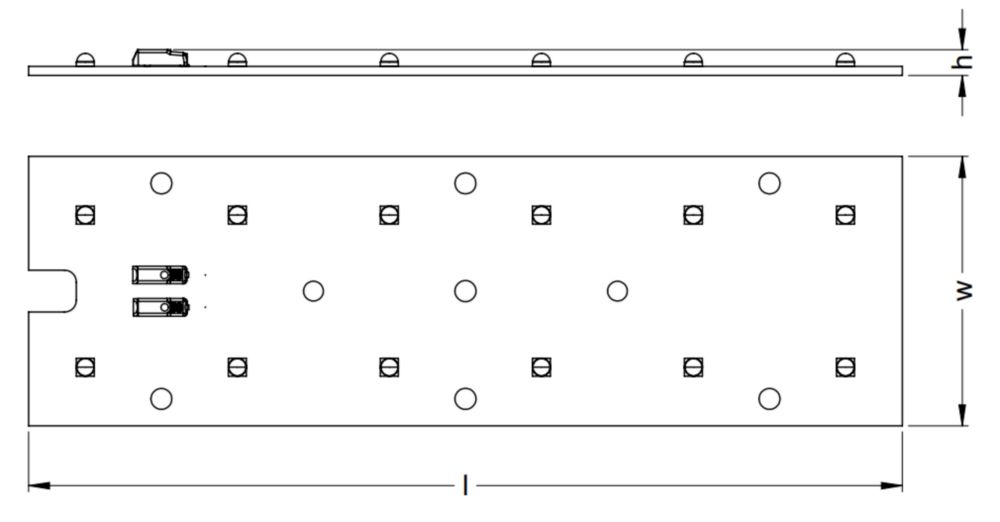

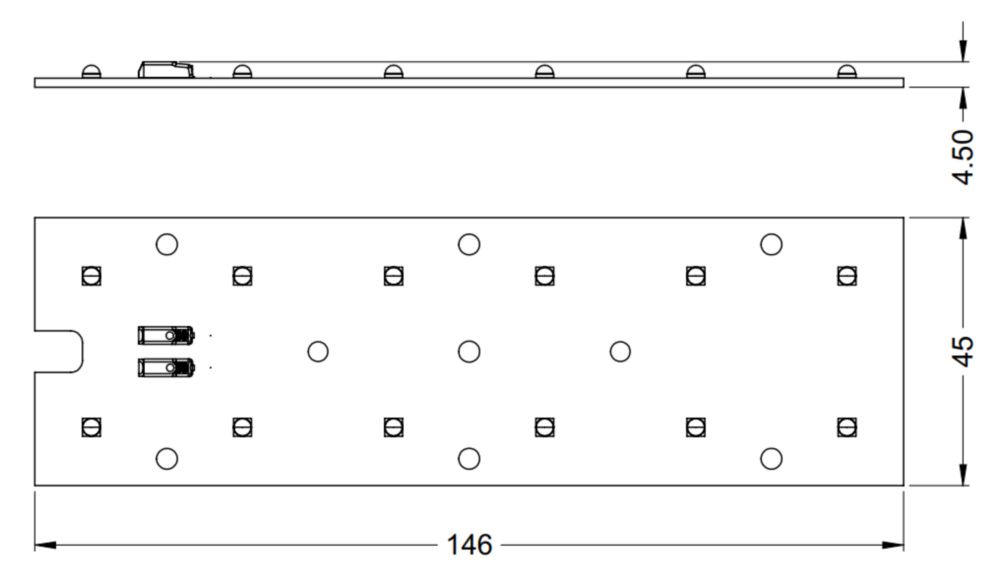

Geometry according to Zhaga Book 19
Type of protection: IP00
Compatible to optics with IP solution, e.g. Ledil STRADA-IP-2x6 series
Product family benefits
Available in four different color temperatures
Extra-long lifetime – 100,000 hours (L80B10)
Compatible with third party optics, e.g. from LEDIL
Dimensions aligned with Zhaga book 19
Areas of application
Area illumination for Highbay light for industry and outdoor application
Highbay lighting
Street and area lighting
Outdoor application
Street and urban lighting
Ecodesign regulation information:
Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.
