Product family features

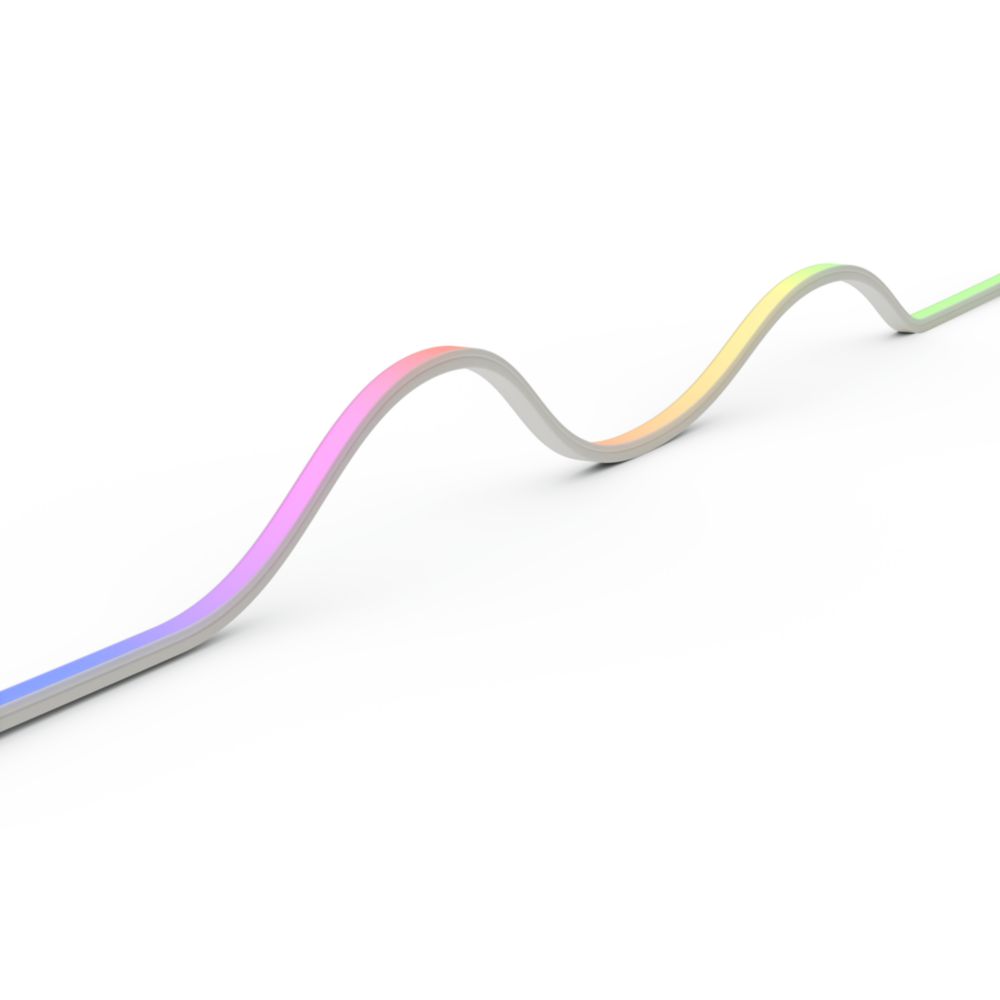

24V Constant Voltage Dimmable LED strip with single SEU control via DMX
Cuttable and controllable every 10 cm
High quality RGBW LEDs (4chips in 1) IP safe
TFD250TAD-RGBW4-G1-05 L2
Product family benefits
Pastel colours thanks white LED with good color rendering (4000K)
Long lifetime: 50.000 hours
Luminous flux up to 280 lm/m
IP67 protection
Areas of application
Pastel colour applications
Mood, Architectural & Entertainment façade light
Equipment / Accessories
2 cables soldered on each side
End cap designed by the same width as the tape light
System solution in combination with Inventronics 24V Constant Voltage and DMX LED drivers
Applicable regions
APAC (excl. China, India, Japan)
CHINA
EUROPE
INDIA
MEA
Find technical data and additional assets in our datasheet
Technical data
Electrical data
| Nominal voltage | 24.0 V |
|---|---|
| Type of current | DC |
| Nominal wattage per meter | 18.0 W |
| Rated wattage | 90.00 W |
| Input voltage range | 23…25 V |
| Accidental reverse input voltage protection up to | 25 V |
Photometrical data
| Color rendering index Ra | 80 |
|---|---|
| Luminous flux per meter | 290 lm |
| Luminous efficacy | 7 lm/W |
| Light color (designation) | 4200 K |
| Color Temperature | 4000 K |
Light technical data
| LED pitch | 14.29 mm |
|---|---|
| Beam angle | 120 ° |
| Starting time | 0 s |
| Warm-up time (60 %) | 0 s |
LED module information
| Number of LEDs per meter | 70 |
|---|---|
| Number of LEDs per smallest unit | 7 |
Dimensions & weight
| Length | 5000 mm |
|---|---|
| Length – smallest unit | 100.0 mm |
| Width | 16.0 mm |
| Height | 20.0 mm |
| Product weight | 1912.00 g |
| Cable cross-section, input side | 0.5 mm² |
Colors & materials
| Cover material | Silicone |
|---|
Temperatures & operating conditions
| Temperature range in operation at Tc point | -20…75 °C |
|---|---|
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -25…80 °C |
Lifespan
| Rated lamp life time | 50000 h |
|---|---|
| Nominal lamp life time | 50000 h |
| Number of switching cycles | 15000 |
Additional product data
| ID of contained light source | LS_TRV_287054 |
|---|
Capabilities
| Lowest bending radius | 250 mm |
|---|---|
| Self-adhesive | No |
| With connection set | No |
| Lowest bending radius | 250 mm |
Certificates & standards
| Standards | CE |
|---|---|
| Type of protection | IP67 |
Logistical data
| Applicable region | APAC (excl. China, India, Japan) / CHINA / EUROPE / INDIA / MEA |
|---|
Equipment / Accessories
Logistical Data
| Product code | Product description | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Volume | Gross weight |
|---|---|---|---|---|---|
| 6937186134769 INVENTRONICS | TFD250TAD-RGBW4-G1 -05 L2 | Shipping carton box 5 Pieces | 505 x 505 x 255 mm | 65.03 dm³ | 2799.60 g |
Accessories Optional
| Product description | Accessory name | Accessory code | |
|---|---|---|---|
| TFD250TAD-RGBW4-G1 -05 L2 | null | 6937186134660 | |
| TFD250TAD-RGBW4-G1 -05 L2 | null | 6937186134684 | |
| TFD250TAD-RGBW4-G1 -05 L2 | null | 6937186134707 | |
| TFD250TAD-RGBW4-G1 -05 L2 | FX-DCS -G1-GL-25 | 6937186139818 |
Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration:
01-09-2026
Candidate List Substance 1:
no declarable substance contained
CAS No. of substance 1:
no declarable substance contained
Declaration No. in SCIP database:
In work
Product code:
6937186134769
Predecessor:
6977078995740
