Product family features
Supply voltage: 220…240 V
Line frequency: 50 Hz | 60 Hz
Line voltage: 198…264 V

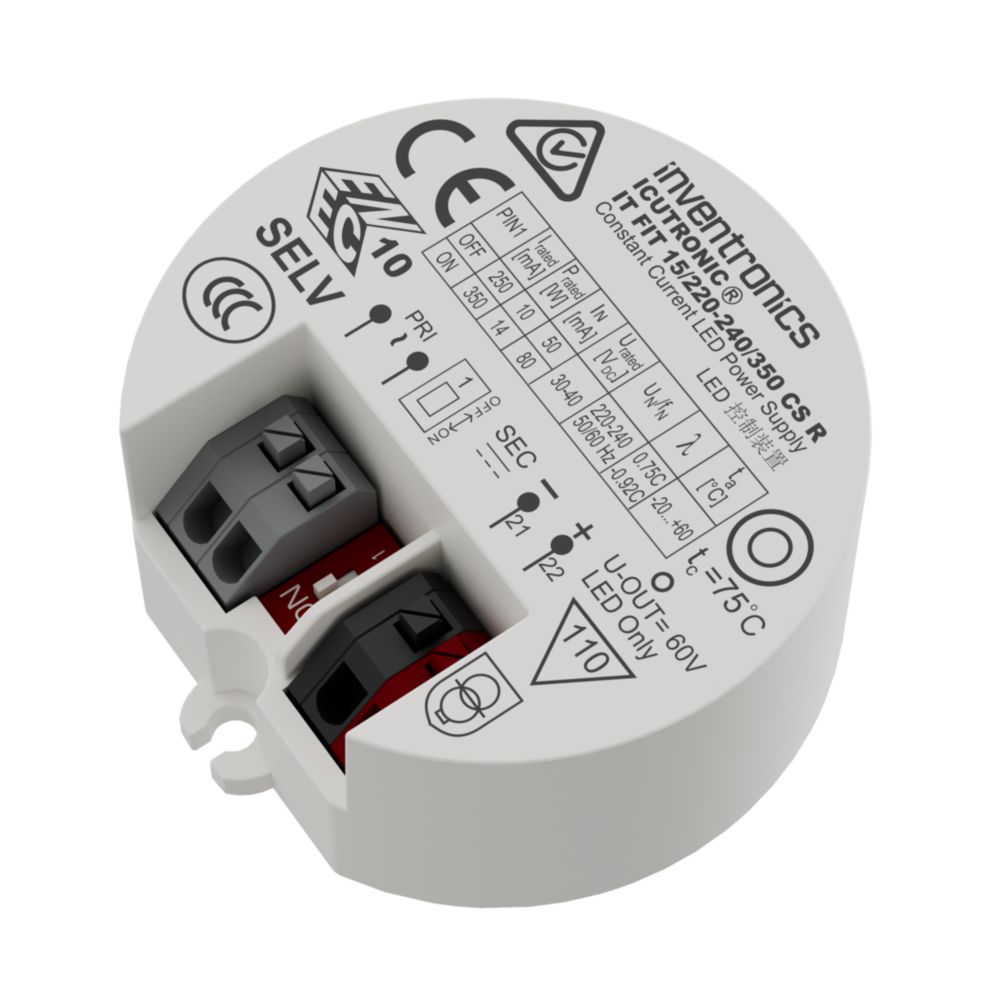

IT FIT 15/220-240/350 CS R
Product family
Product family benefits
Higher quality of light thanks to < 3% output ripple current
Operating temperature: up to 60 °C
Flexible current selection via DIP switch
Reversible overtemperature, overload, short-circuit and open-circuit protection
High efficiency (up to 92%)
Areas of application
Extra small design for integration in small spotlights
Suitable for luminaires of protection classes I and II
Suitable for indoor SELV installations
Ecodesign regulation information:
Intended for use with LED modules.
The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.
Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.
Find technical data and additional assets in our datasheet
Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration:
21-11-2025
Candidate List Substance 1:
Lead
Candidate List Substance 2:
Lead
CAS No. of substance 1:
7439-92-1
CAS No. of substance 2:
7439-92-1
Safe Use Instruction:
The identification of the Candidate List substance is sufficient to allow safe use of the article.
Declaration No. in SCIP database:
003ecf00-c40d-46ba-afde-31f330720ab4
Product code:
6937186134066
