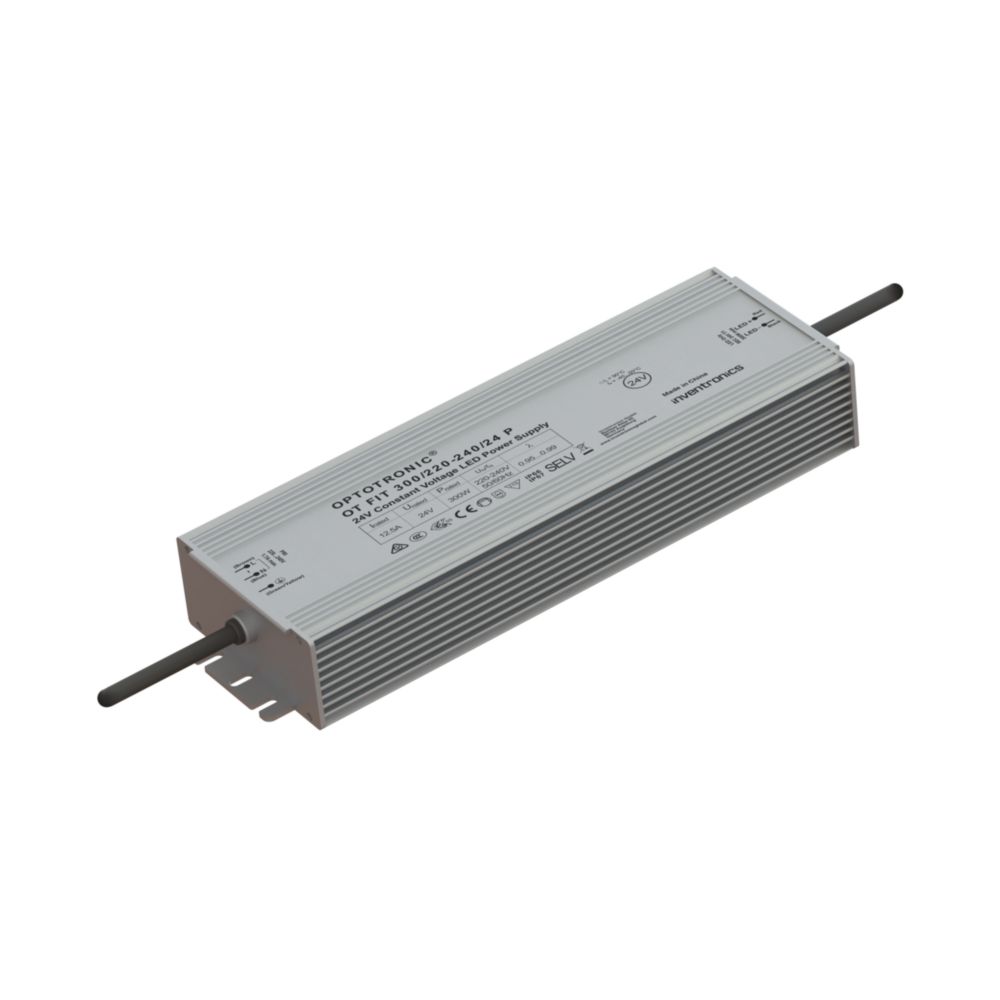

Name: OT FIT 300/220-240/24 P
Brand: Inventronics
Availability: InStock

Product family features

Small housing design for mounting in coves or linear luminaires

Versatile scope of application thanks to an output power range of up to 300 W

Robust and durable design for outdoor applications

Areas of application

For example luminous signage in areas such as hotels

Public squares and architecture lighting

Suitable for indoor and outdoor SELV installations

Ecodesign regulation information:

Intended for use with LED modules.

The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.

Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.

Applicable regions
 APAC (excl. China, India, Japan)
 CHINA
 EUROPE
 MEA
 SOUTH AMERICA

Approval marks

CE, CCC, TISI, RCM

Mains frequency	50…60 Hz
Input voltage AC	198…264 V
Input voltage DC	not relevant
Total harmonic distortion	< 5 %¹⁾
Power factor λ	0.95…0.99
Efficiency in full-load	93 %²⁾
Device power loss	22.5 W
Inrush current	60 A³⁾
Max. ECG no. on circuit breaker 10 A (B)	2
Max. ECG no. on circuit breaker 16 A (B)	4
Surge capability (L/N-Ground)	6 kV
Surge capability (L-N)	4 kV
Nominal output voltage	24 V
U-OUT (working voltage)	< 25.5 V
Nominal output power	150…300 W
Maximum output power	300 W⁴⁾
Galvanic isolation	SELV
Nominal input current at 230 V	1.7 A

Length	260.0 mm
Width	68.0 mm
Height	39.6 mm
Mounting hole spacing, length	249.0 mm
Mounting hole spacing, width	34.0 mm
Cable cross-section, input side	1.0 mm²
Cable cross-section, output side	1.0 mm²
Wire preparation length, input side	60 mm
Wire preparation length, output side	60 mm
Product weight	1125.00 g

Ambient temperature range	-40…+50 °C
Maximum temperature at tc test point	90 °C
Max.housing temperature in case of fault	110 °C
Temperature range at storage	-40…+85 °C
Permitted rel. humidity during operation	5…85 %¹⁾

Dimmable	No
Max. cable length to lamp/LED module	3.0 m¹⁾
Suitable for fixtures with prot. class	I
Type of connection, input side	Cables
Type of connection, output side	Cables
Number of channels	1
Overheating protection	Yes
Overload protection	Yes
Short-circuit protection	Yes
Intended for no-load operation	No
No-load proof	Yes

Approval marks – approval	CE / CCC / TISI / RCM
Standards	IEC 61347-1 / IEC 61347-2-13 / EN 55015 / EN 61547 / EN 61000-2-2 / EN 61000-3-2 / EN 60598-1 / EN 62384
Type of protection	IP66/IP67

Technical data

Electrical data

Dimensions & weight

Colors & materials

Temperatures & operating conditions

Lifespan

Capabilities

Certificates & standards

Logistical data

Logistical Data

Commodity code	85044083900
Applicable region	APAC (excl. China, India, Japan) / CHINA / EUROPE / MEA / SOUTH AMERICA
