Product family features

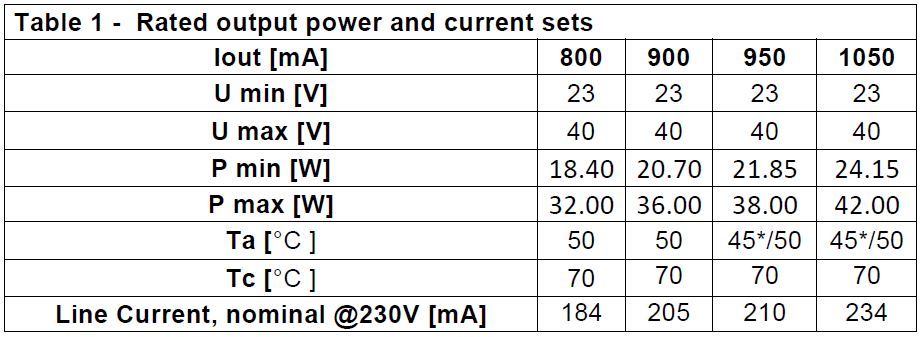

Output current range 250-1050 mA
Output voltage range 23-40V
DIP switches
Low LF-ripple < 3%

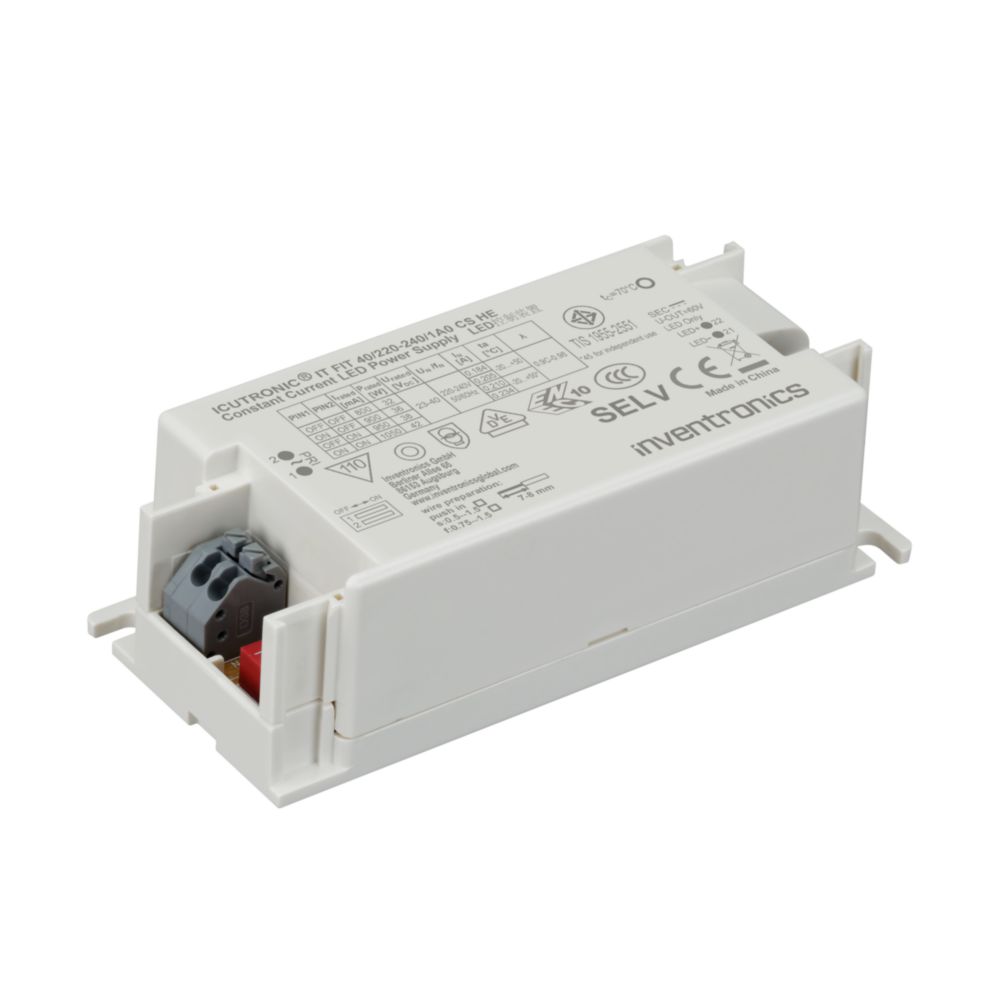

IT FIT 40/220-240/1A0 CS HE (NEW)
Product family
Product family benefits
Higher quality of light thanks to low output ripple current
High flexibility due to four different output currents
Small housing for flexible luminaire designs
High efficiency (up to 93%)
Long lasting and high reliability
Safety ensured by Inventronics (SELV)
Areas of application
Suitable for downlights, spotlights and LED panels
Suitable for indoor SELV installations
Installation and independent mounting via Cable Clamp Kit possible
Ecodesign regulation information:
Intended for use with LED modules.
The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.
Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.
Find technical data and additional assets in our datasheet
Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration:
21-10-2025
Candidate List Substance 1:
Lead
CAS No. of substance 1:
7439-92-1
Safe Use Instruction:
The identification of the Candidate List substance is sufficient to allow safe use of the article.
Declaration No. in SCIP database:
e6e2ad4f-fd8f-43c2-84bb-6fdf6ac7f63c
Product code:
6937186110121
