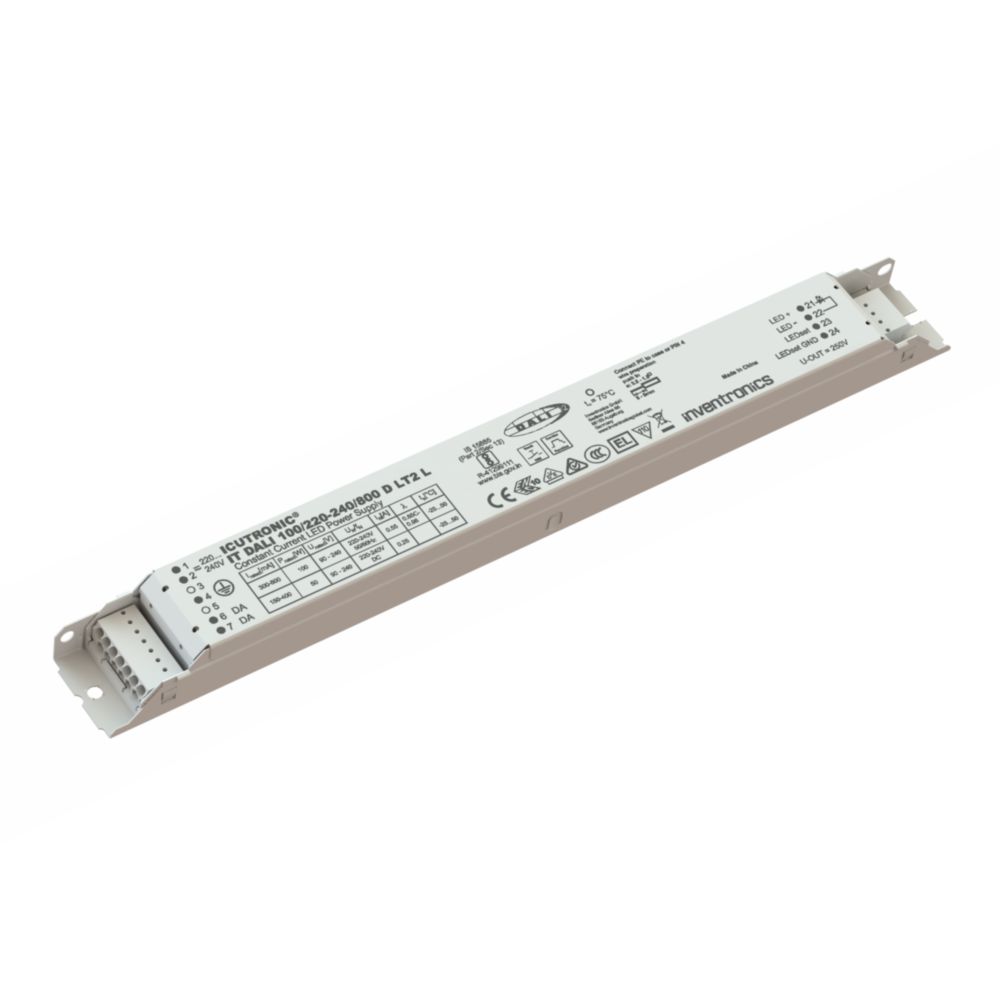

IT DALI 100/220-240/800 D LT2 L (NEW)
Product family
Product family features
Line frequency: 0 Hz | 50 Hz | 60 Hz
With Touch DIM and Corridor Function
Supply voltage: 220…240 V
Available with output current range: up to 800 mA
SELV driver
Constant Lumen Output (CLO)
Versatile scope of application due to output power range of up to 100 W
Product family benefits
DALI-2 certified
Fully programmable via software (DALI Interface)
Flexible current setting (RSet)
Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
High-quality dimming of 3…100 % by amplitude dimming
Wide operating range
High quality of light thanks to <4% output ripple current
High efficiency
Low network standby consumption ≤ 0.25 W
Fulfill safety requirement due to overload, overtemperature, Hot Plug protection
Non-isolated driver
3- and 4-channel DMX dimmer for RGB and RGBW LED module
Small, slim white metal housing (W )30 x (H)21 mm
Areas of application
Linear and area lighting
Linear lighting for office, education, industry, storage areas and retail
Installation in emergency lighting systems according to IEC 61347-2-13, appendix J, except those used in high-risk task areas, i.e. those systems must not be used in workplaces where operators and other occupants of the premises are involved in potentially dangerous processes or situations.
Suitable for luminaires of protection class I
Suitable for emergency light installations
Ecodesign regulation information:
Intended for use with LED modules.
The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.
Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.
Find technical data and additional assets in our datasheet
Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration: 26-09-2024
Primary Article Identifier: 4062172380133
Declaration No. in SCIP database: In work
