Product family features
AC Supply Voltage 220-240 Vac
Line frequency: 50 Hz | 60 Hz
Line voltage: 198…264 V

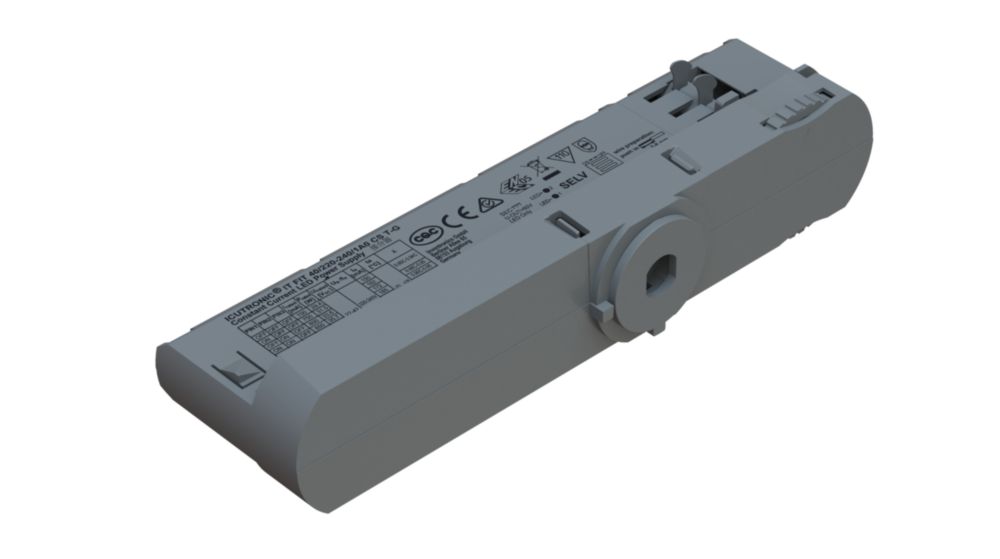

SELV LED driver in track adaptor
Lifetime 50 000 h at tc max
Dip-switches for easy output current selection
Low THD <10% @ full load
Low LF-ripple < 5%
Product family benefits
Compact size for miniaturized track light luminaire design
High light quality due to low ripple current
Three colors available: White, Grey, Black
High flexibility due to eight different output currents
High efficiency (up to 90%)
Areas of application
Shops
Retail outlets
Public buildings
Suitable for luminaires of protection class II
Suitable for three circuits system
Ecodesign regulation information:
Intended for use with LED modules.
The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.
Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.
