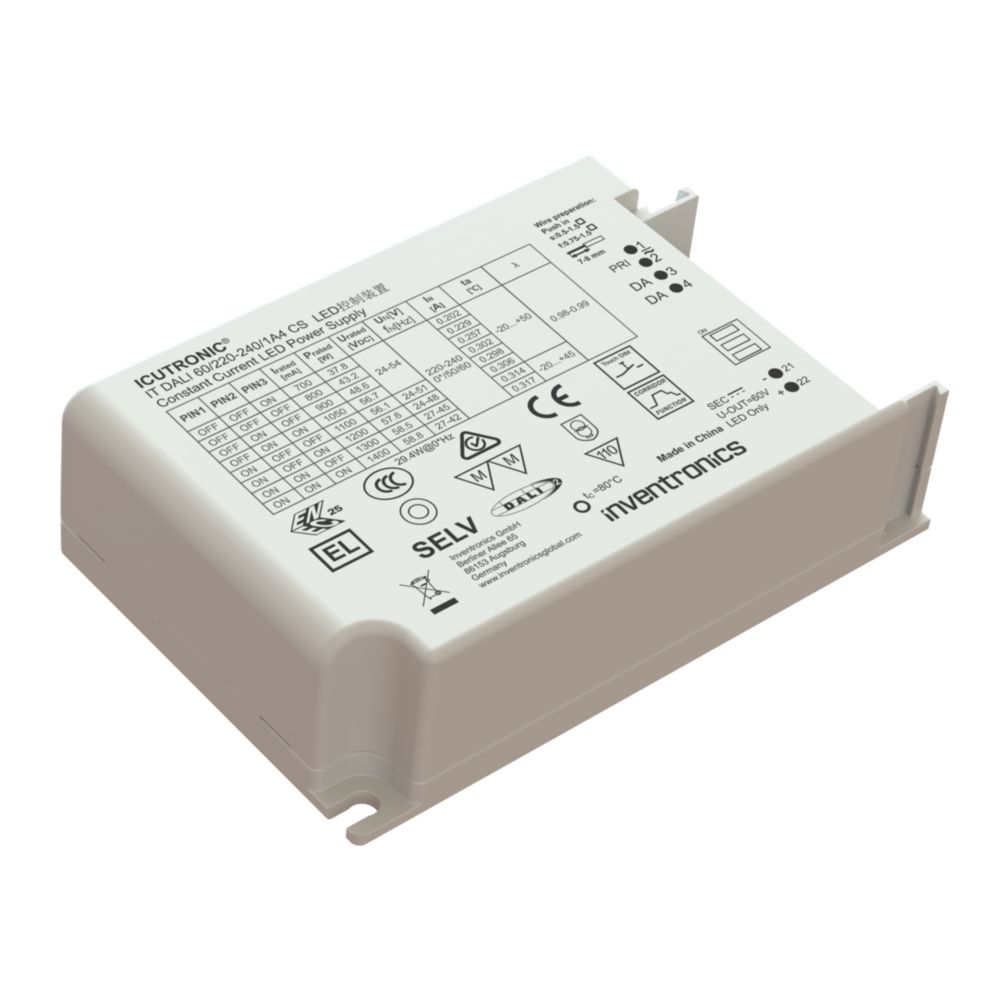

IT DALI 60/220-240/1A4 CS|4062172373982

Product family features
 Supply voltage: 220…240 V
 Line voltage: 198…264 V
 Line frequency: 0 Hz | 50 Hz | 60 Hz
 Lifetime: up to 50,000 h (temperature at max. tc )
 Type of protection: IP20

Product family benefits
 Safety ensured by OSRAM (SELV)
 DALI-2 certified
 High flexibility due to eight different output currents
 Touch DIM application: easy to control via pushbutton or sensor
 Easy to use in corridors and restrooms because of three-level Corridor function
 Higher quality of light thanks to low output ripple current
 Small housing for flexible luminaire designs
 Housing from 80% recycled plastic

Areas of application
 Offices
 Shops
 Hospitality
 Panels, spotlight, downlight, and other indoor LED luminaires
 Suitable for indoor SELV equivalent installations
 Suitable for luminaires of protection classes I and II
 Installation in emergency lighting systems according to IEC 61347-2-3, appendix J

Ecodesign regulation information:

Intended for use with LED modules.

The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.

Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.
