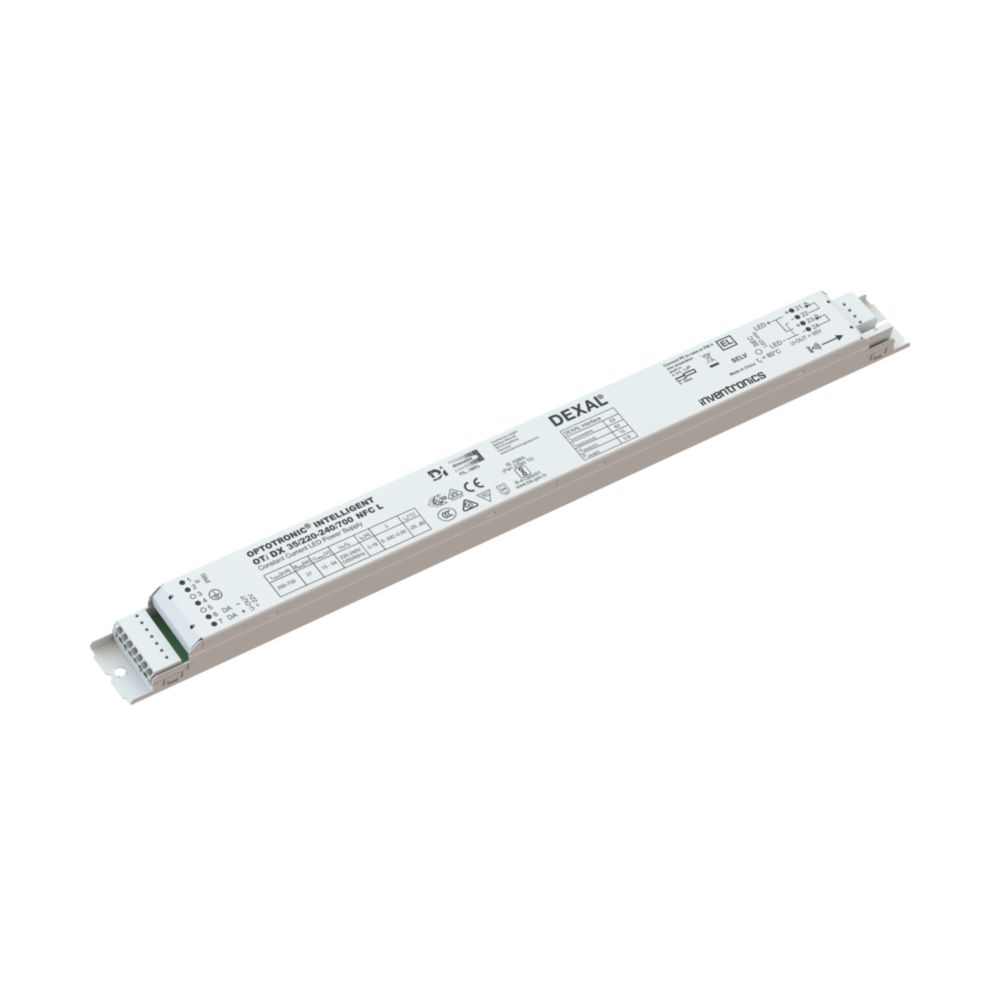

OTI DX 35/220-240/700 NFC L
Product family
Product family features
Line frequency: 0 Hz | 50 Hz | 60 Hz
Supply voltage: 220…240 V
Constant Lumen Output (CLO)
Monitoring of luminaire operating parameters
SELV driver
Product family benefits
D4i certified SELV DX LED driver up to 80 W due to flexible output characteristic
Integrated DEXAL Bus power supply for sensors and wireless radios
Simplified luminaire design for wireless lighting control system and sensors
Locking and unlocking of luminaire/driver data
Advanced luminaire/driver data (power, energy, operating hours…) for analytics
Following DiiA Specification Parts -250, -251, -252 and -253
Fully programmable via T4T software (NFC, DALI Interface)
Very high efficiency
Wide operating range up to 2100 mA
Areas of application
Linear lighting for office, education, industry, storage areas and retail
DEXAL, easy connection to different partner BMS systems
Suitable for "Works with OSRAM DEXAL" partner components
Suitable for luminaires of protection class I
Ecodesign regulation information:
Intended for use with LED modules.
The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.
Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.
Find technical data and additional assets in our datasheet
Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration: 26-09-2024
Primary Article Identifier: 4062172372893
Declaration No. in SCIP database: In work
