Product family features
Flexible with 1 driver offers 4 output currents
Low THD <10% @ full load
Input voltage: 220 – 240 VAC
Ambient temp range ta: -25 to +50 °C
Low LF-ripple < 5%
5 years guarantee*
Non-isolated drivers
HF LI Sensor (Light- and motion detection via radar)
StepDIM function for different light levels
Different operating modes for daylight- or motion-dependent switching selectable
Motion detection range adjustable
Detection height up to 6 meter
Product family benefits

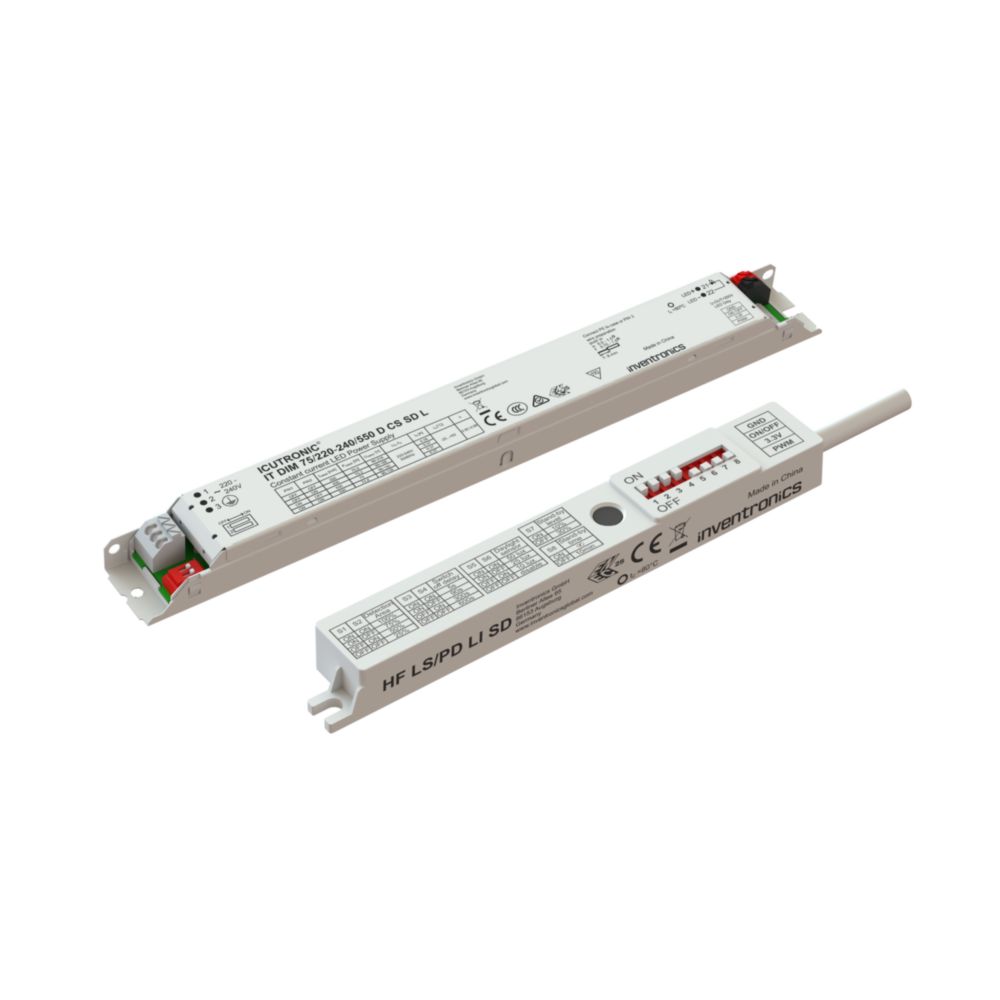

KIT including driver, HF Sensor and cabling
Non isolated system for energy saving applications
High quality light with very low ripple
Very high efficiency
Enable slim fixture design with flat 21 mm height metal housing
Long lasting and high reliability
Areas of application
Linear and area lighting
Industrial, retail and parking garage lighting
Ecodesign regulation information:
Intended for use with LED modules.
The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.
Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.
