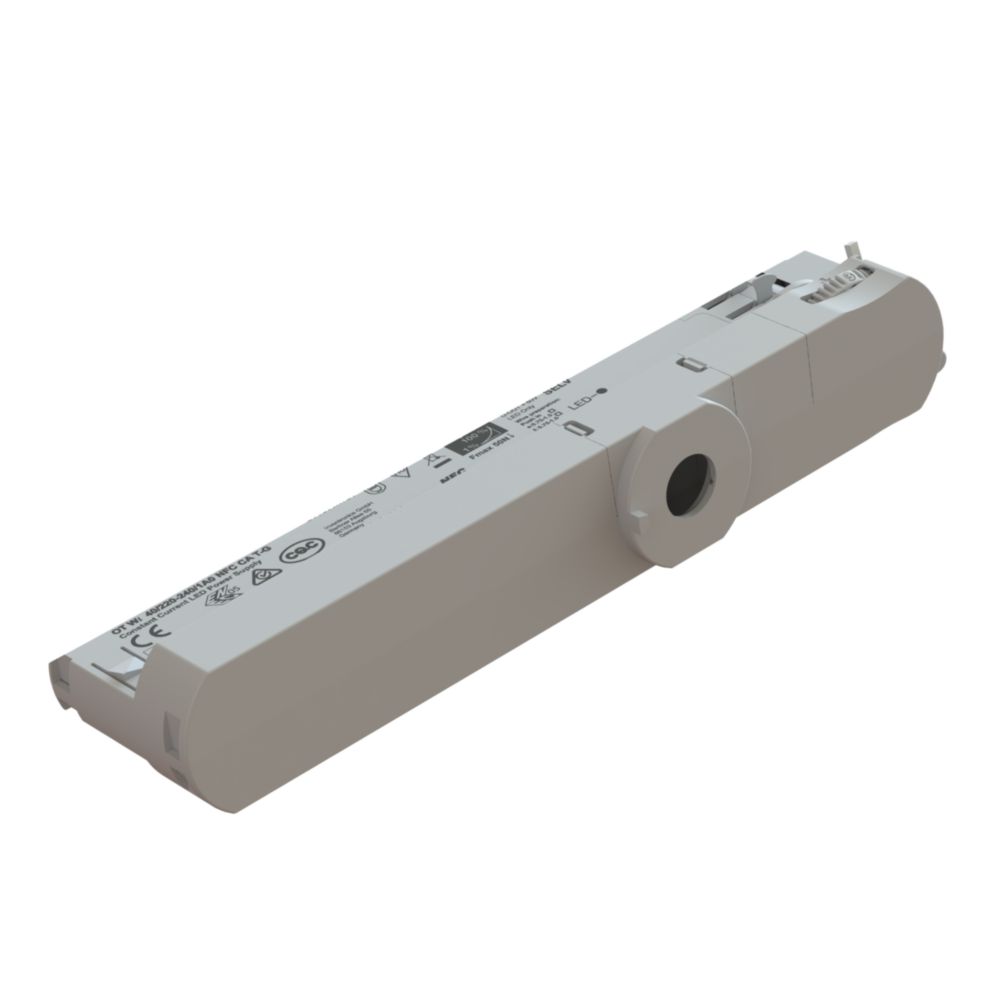

OT WI 40/220-240/1A0 NFC CA T-G|4062172350143

Product family features
 Driver with integrated CASAMBI lighting control system
 Supply voltage: 220…240 V
 Line frequency: 0 Hz | 50 Hz | 60 Hz
 Line voltage: 198…264 V
 Lifetime: up to 100,000 h
 Type of protection: IP20

Product family benefits
 High quality of light thanks to low output ripple current
 Short housing for minimum distance between spotlights
 Versatile CASAMBI window driver due to flexible output characteristic
 Easy and fast output current setting via NFC
 High-quality dimming of 1…100 % by amplitude dimming
 SELV system

Areas of application

Track lights

Shops and hospitality: retail, hotels, restaurants

Ecodesign regulation information:

Intended for use with LED modules.

The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.

Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.
