PL-FLAT-AC-BL-G3 2500-840 230 V
Product family
Product family features
Qualified Bluetooth mesh wireless control
Dimming range: 1…100 %
Designed for wall and ceiling luminaires with diffuse light distribution
Low-cost LED replacement of CFL wall-, and ceiling luminaires
Driver integrated on LED board
Lifetime (L70/B50): 50,000 h
LED module is reinforced isolated to mounting surface
Photobiological safety according to IEC/TR 62778, risk group RG1
Product family benefits
Touch protection accessory for simple use in luminaires
High reliability
Easy to use
Optimised design for simple thermal management
Enables thin and efficient luminaire designs
High quality of light thanks to low modulation
5 year guarantee
Areas of application
Corridors
Stairways
Landings
Hallways
Ecodesign regulation information:
Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.
Find technical data and additional assets in our datasheet
Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration:
12-04-2025
Declaration No. in SCIP database:
In work
Product code:
4062172342490
Downloads

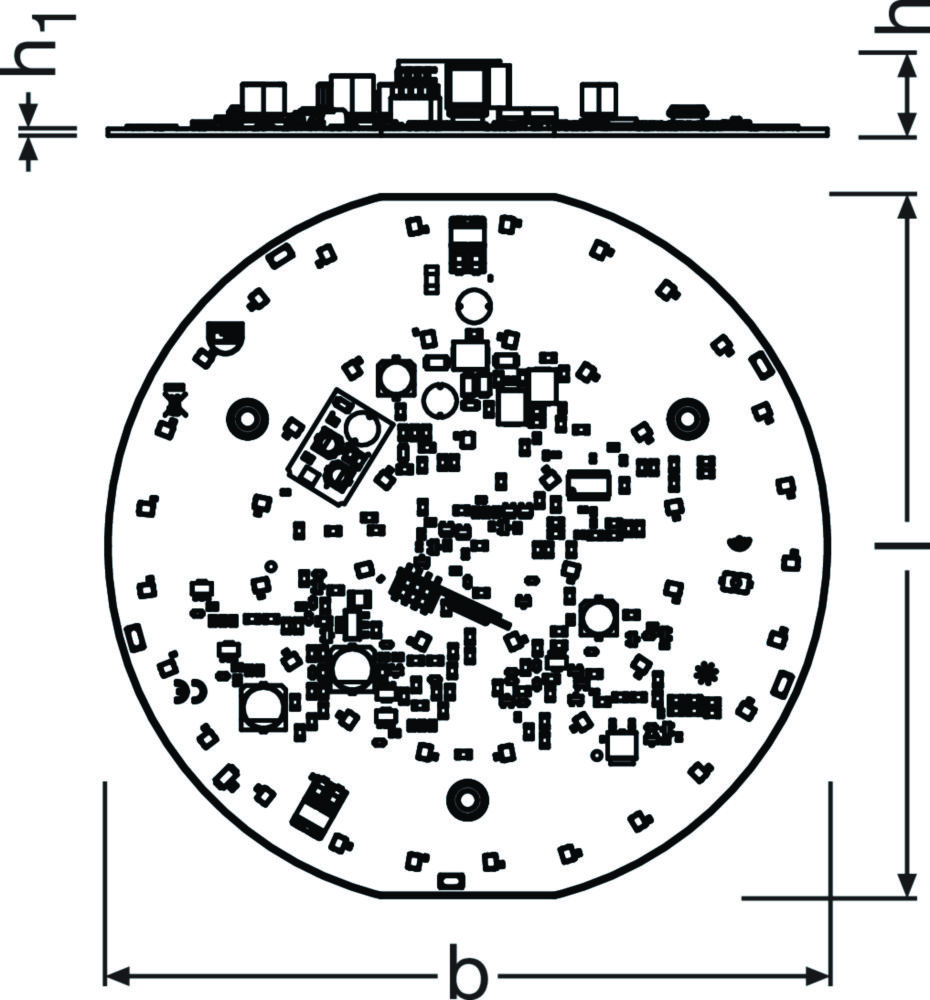

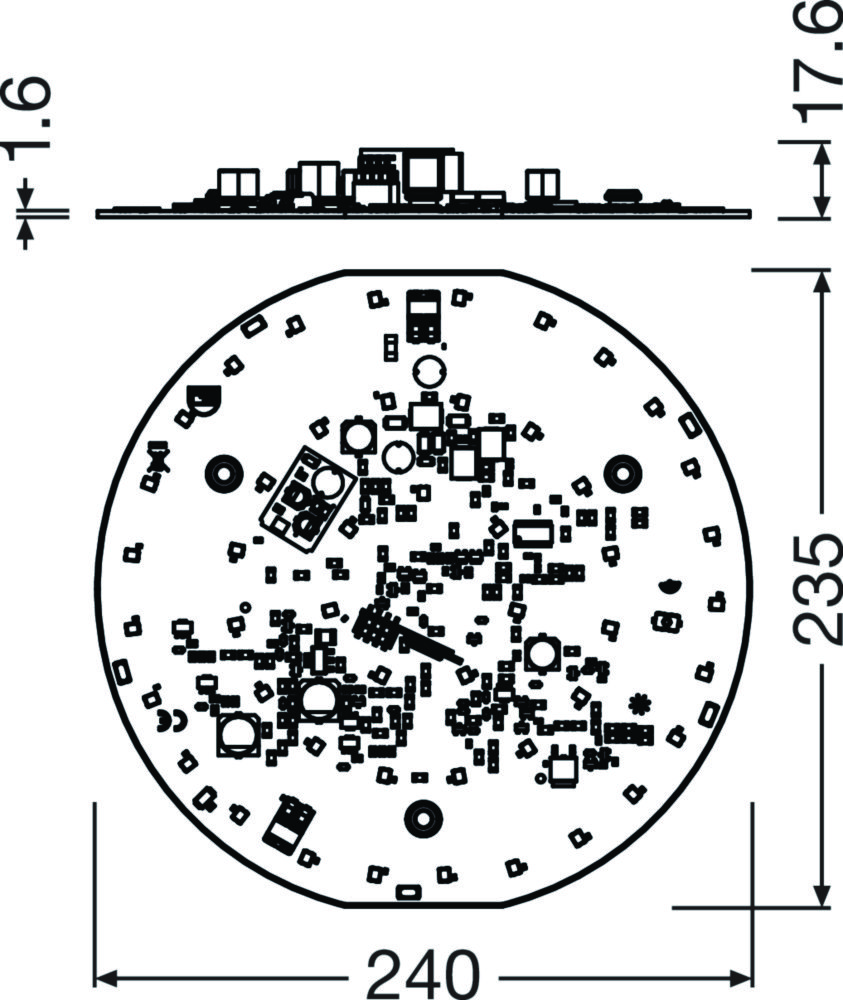

CAD data 2-dim
Size: 343kb
User instruction
Size: 2Mb
User instruction
Size: 3Mb
Energy label, vertical
Size: 46kb
CAD data 3-dim
Size: 645kb
