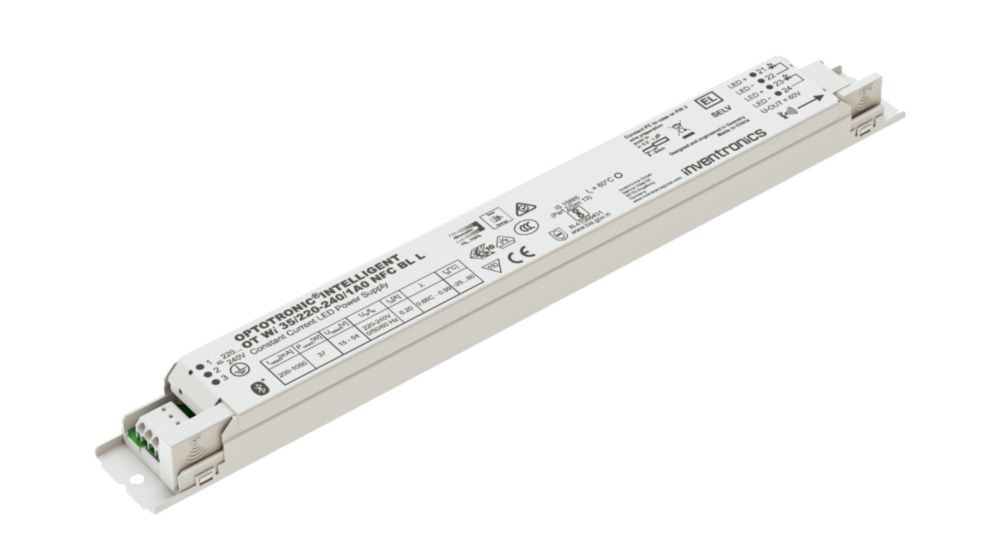

OT WI 35/220-240/1A0 NFC BL L
Product family
Product family features
Qualified Bluetooth mesh enabled by Silvair
Supply voltage: 220…240 V
Line frequency: 0 Hz | 50 Hz | 60 Hz
Lifetime: up to 100,000 h
Type of protection: IP20
SELV driver
Product family benefits
Versatile QBM window driver up to 80 W and 750 mA
Fully programmable via software (NFC)
Very high efficiency
High-quality dimming of 1…100 %
Higher quality of light thanks to < 1% output ripple current
Fulfill safety requirement due to overload, overtemperature, Hot Plug protection
Areas of application
Linear lighting for office, education, hospitality and retail
Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
Suitable for indoor SELV installations
Suitable for luminaires of protection class I
Ecodesign regulation information:
Intended for use with LED modules.
The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.
Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.
Find technical data and additional assets in our datasheet
Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration: 26-09-2024
Primary Article Identifier: 4062172311205
Declaration No. in SCIP database: In work
Downloads
CAD data 3-dim
Size: 168kb
Certificates
Size: 441kb
Certificates
Size: 246kb
Mandatory Publications
Size: 134kb
Mandatory Publications
Size: 131kb
User instruction
Size: 3Mb
