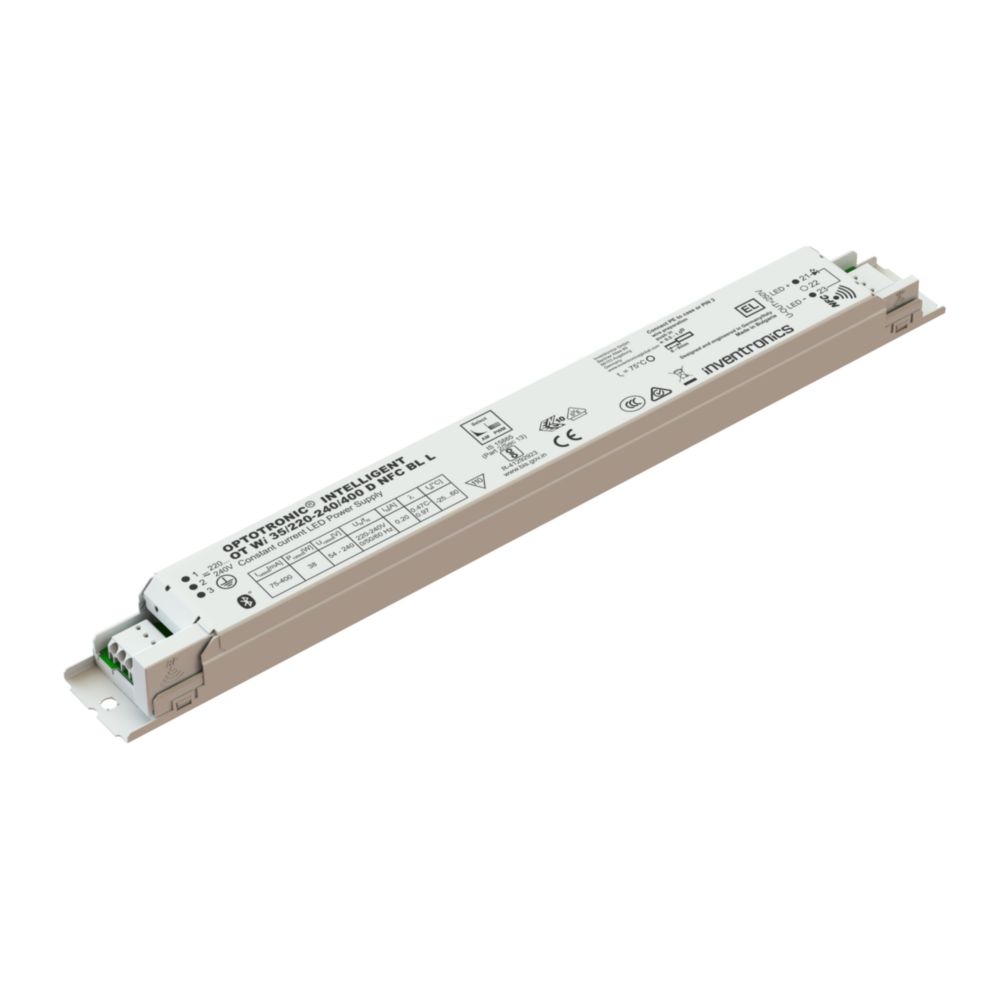

OT WI 35/220-240/400 D NFC BL L|4062172267373

Product family features
 Qualified Bluetooth mesh enabled by Silvair
 Supply voltage: 220…240 V
 Line frequency: 0 Hz | 50 Hz | 60 Hz
 Line voltage: 198…264 V
 Lifetime: up to 100,000 h
 Type of protection: IP20
 Non-isolated drivers

Product family benefits
 Versatile QBM window driver up to 100 W and 750 mA
 Fully programmable via software (NFC)
 Very high efficiency
 High-quality dimming of 1…100 % (amplitude and/or PWM selectable by software)
 Higher quality of light thanks to < 1% output ripple current
 Fulfill safety requirement due to overload, overtemperature, Hot Plug protection

Areas of application

Linear lighting for office, education, industry, storage areas and retail

Installation in emergency lighting systems according to IEC 61347-2-13, appendix J

Suitable for indoor non-isolated installations

Suitable for luminaires of protection class I

Ecodesign regulation information:

Intended for use with LED modules.

The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.

Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.
