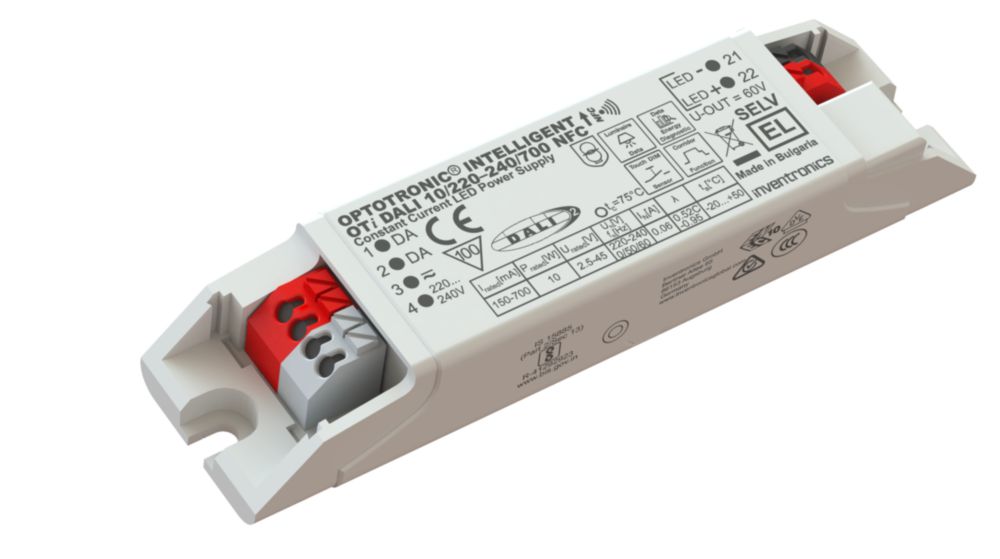

OTi DALI 10/220-240/700 NFC|4062172250269

Product family features
 Supply voltage: 220…240 V
 Line frequency: 0 Hz | 50 Hz | 60 Hz
 Line voltage: 198…264 V
 Lifetime: up to 100,000 h
 Type of protection: IP20

Product family benefits
 Small housing for flexible luminaire designs
 Versatile DALI window driver due to flexible output characteristic
 Easy and fast output current setting via NFC
 Very high efficiency
 High-quality dimming of 1…100 % by amplitude dimming
 DALI-2 certified incl. Parts 251, 252, 253
 Easy to use in corridors and restrooms because of three-level Corridor function
 Touch DIM application: easy to control via pushbutton or sensor

Areas of application
 Suitable for downlights, spotlights and LED panels
 Suitable for use in luminaires with flexible current setting
 Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
 Suitable for indoor SELV installations
 Suitable for luminaires of protection classes I and II

Ecodesign regulation information:

Intended for use with LED modules.

The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.

Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.
