Product family features

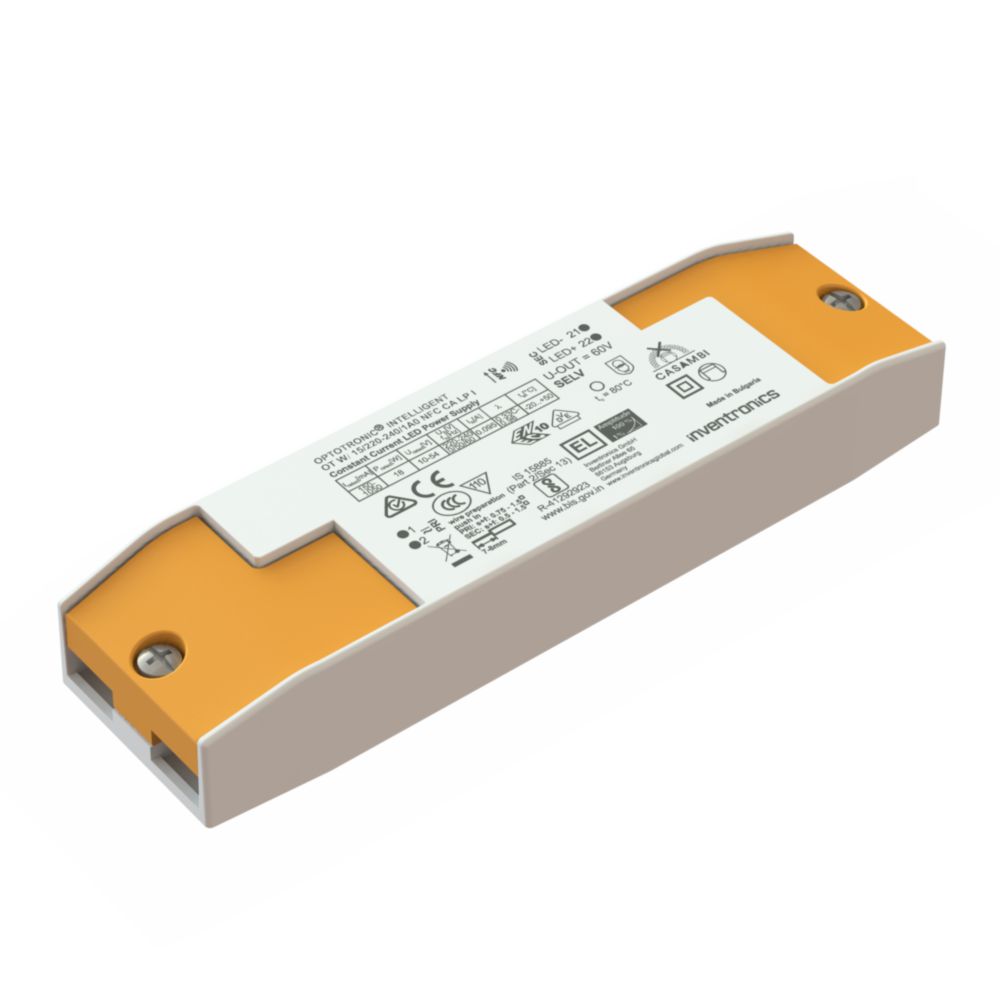

Driver with integrated CASAMBI lighting control system
Supply voltage: 220…240 V
Line frequency: 0 Hz | 50 Hz | 60 Hz
Line voltage: 198…264 V
Lifetime: up to 100,000 h
Type of protection: IP20
Integrated cable clamp for luminaire and independent installation
Product family benefits
Small housing for flexible luminaire designs
Versatile CASAMBI window driver due to flexible output characteristic
Easy and fast output current setting via NFC
Very high efficiency
High-quality dimming of 1…100 % by amplitude dimming
Areas of application
Suitable for downlights, spotlights and LED panels
Suitable for use in luminaires with flexible current setting
Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
Suitable for indoor SELV installations
Suitable for luminaires of protection classes I and II
Ecodesign regulation information:
Intended for use with LED modules.
The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.
Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.
