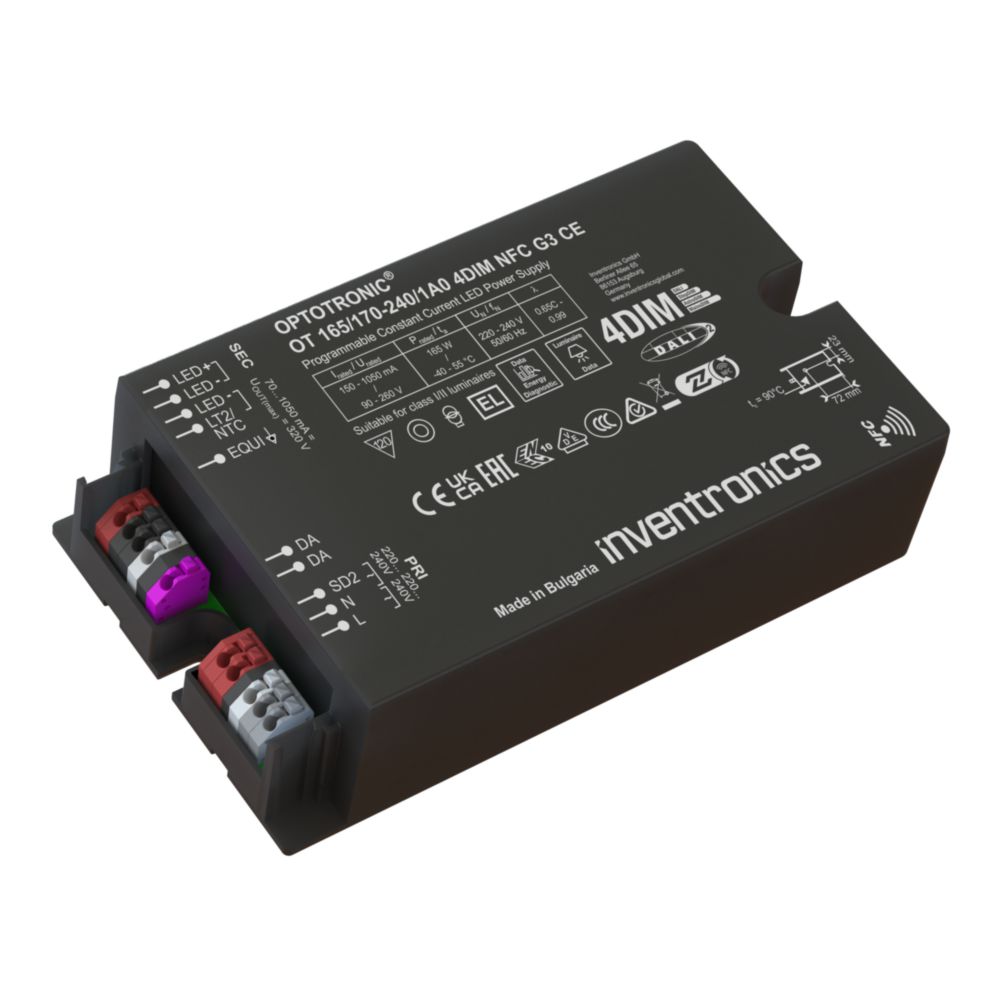

OT 165/170-240/1A0 4DIM NFC G3 CE
Product family
Product family features
Supply voltage: 220…240 V
Wide current output range: 150 mA…1050 mA or 1500 mA
Easy and fast wireless luminaire programming via NFC
Flexible current setting with one additional wire (LEDset2)
AstroDIM for autonomous dimming with five independent levels (astro, time mode)
Allows for energy saving in twilight phases
MainsDIM function for dimming via reduction of line voltage amplitude
Isolated DALI interface for bidirectional telemanagement systems
Standby power consumption: < 0.35 W
Constant Lumen Output (CLO)
Integrated customizable thermal management (Driver Guard)
Product family benefits
4DIM functionality in one device (StepDIM, AstroDIM, MainsDIM, DALI)
DALI-2 certified incl. Parts 251, 252, 253
Easy and fast wireless luminaire programming
Very high efficiency
High surge protection: up to 10 kV (in protection class I or II)
Great flexibility due to wide operating temperature range of -40…55 °C or 60 °C
High surge DALI protection: 1 kV
Protection through double isolation between mains input and LED output
Optimized NFC for programming from the top: easy accessibility in luminaires
Areas of application
Street and urban lighting
Industry
Suitable for outdoor applications in luminaires with IP > 54
Suitable for use in outdoor luminaires of protection class I and II
Ecodesign regulation information:
Intended for use with LED modules.
The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.
Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.
Find technical data and additional assets in our datasheet
Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration: 26-09-2024
Product code: 4062172219075
Declaration No. in SCIP database: In work
