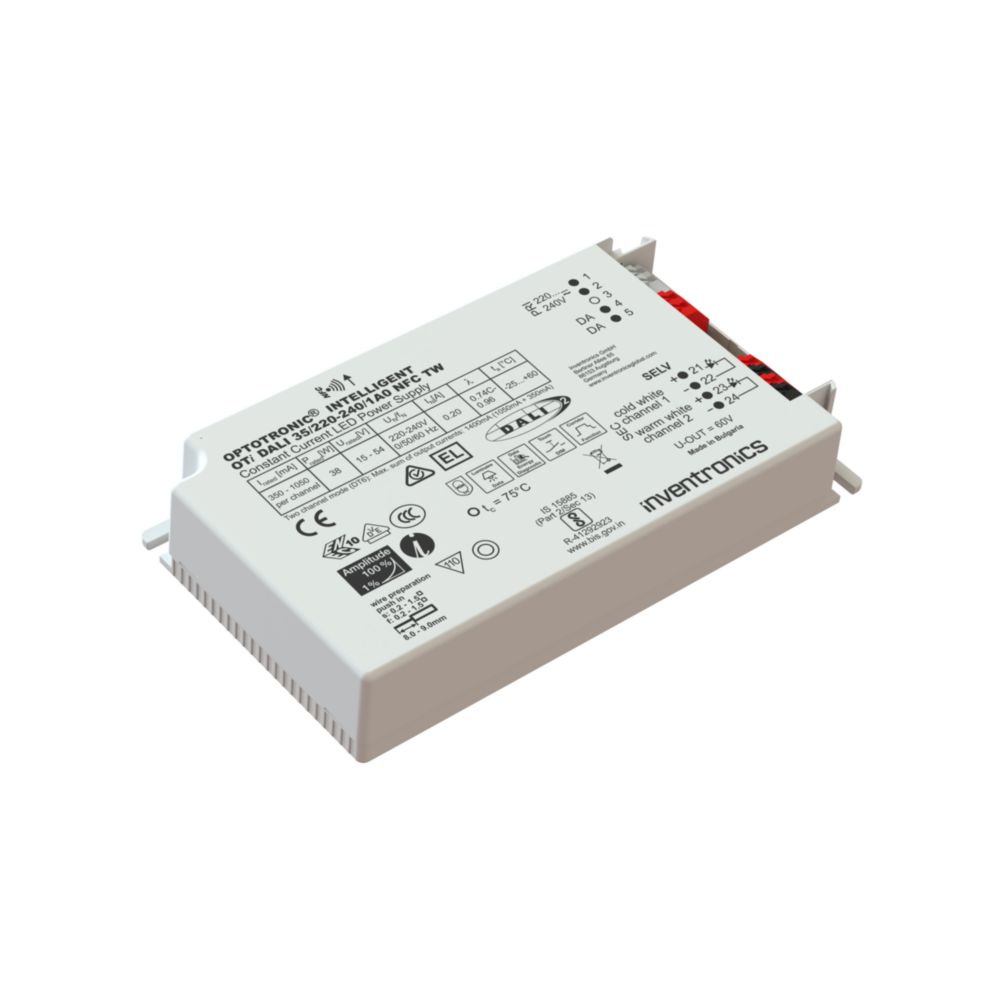

OTi DALI 35/220-240/1A0 NFC TW
Product family
Product family features
Line frequency: 0 Hz | 50 Hz | 60 Hz
Supply voltage: 220…240 V
Usable as DT6 (2-channel) or DT8 (Tunable White) driver
Constant Lumen Output (CLO)
Integrated customizable thermal management (Driver Guard)
SELV driver
Product family benefits
Control of standard white or Tunable White light acc. DALI device type 8 (DT8)
TouchDIM Tunable White integrated for use without additional LMS
Fully programmable via T4T software (NFC, DALI Interface)
Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
High-quality dimming of 1…100 % by amplitude dimming
High quality of light thanks to <1% output ripple current
Fulfill safety requirement due to overload, overtemperature, Hot Plug protection
Areas of application
Classrooms
Conference rooms
Daylight simulation for windowless rooms
For Tunable White as well as for 2-channel use (e.g. direct/indirect lighting)
Healthcare and hospitality with HCL functionality
Independent mounting via Cable Clamp Kit possible
Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
Office with high end HCL functionality
Suitable for indoor and outdoor SELV installations
Ecodesign regulation information:
Intended for use with LED modules.
The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.
Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.
Find technical data and additional assets in our datasheet
Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration: 05-12-2024
Product code: 4062172123501 | 4050732497308
Declaration No. in SCIP database: In work
Downloads
CAD data
Size: 1023kb
CAD data 2-dim
Size: 109kb
CAD data 3-dim
Size: 217kb
Certificates
Size: 246kb
Mandatory Publications
Size: 138kb
Mandatory Publications
Size: 223kb
User instruction
Size: 2Mb
User instruction
Size: 2Mb
