Product family features
Light and presence sensor for luminaire installation
Presence detection via passive IR element
Light sensor operating range: 20…800 lx (measured at sensor)
Mounting height: 2…5 m
Function indicator with two-color LED
Product family benefits
Small housing design
Frames for different mounting types for luminaires
DALI-2 certified
DALI Bus powered (No mains connection necessary)
Multiple sensors connectable to the same DALI line
Presence detection angle adjustable between 40…90° via integrated shutters
Integreatable in light- and building management systems supporting DALI-2 sensors
Areas of application
Suitable for indoor applications
Installation in office luminaires
Suitable for floor standing luminaires in combination with an application controller
Ceiling installation via LS/PD CI KIT or LS/PD AP KIT possible
Equipment / Accessories

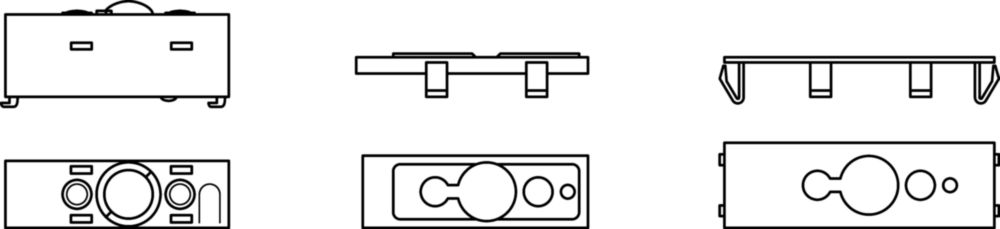

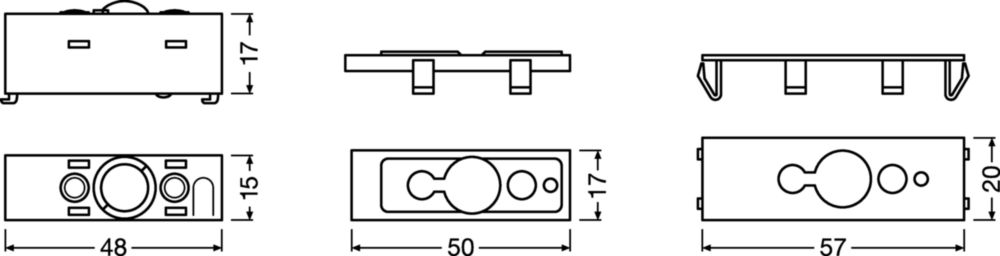

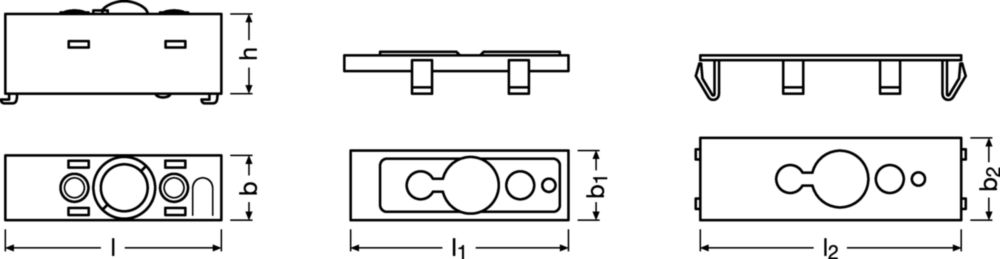

Attachable mounting frame for luminaire mounting from inside and outside
