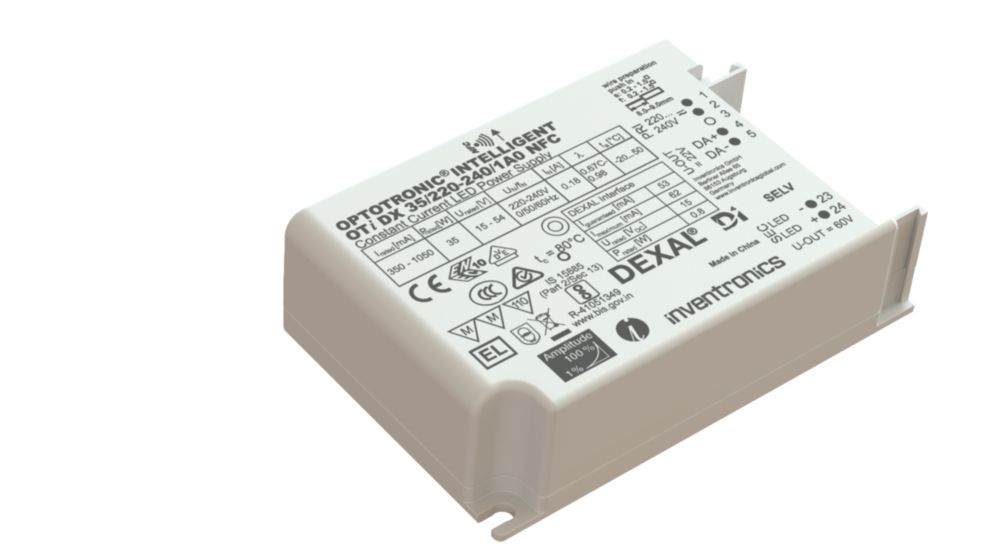

OTI DX 35/220-240/1A0 NFC
Product family
Product family features
Supply voltage: 220…240 V
Line frequency: 0 Hz | 50 Hz | 60 Hz
Line voltage: 198…264 V
According to EN 61347-1, 61347-2-13, 62384
RI suppression: to EN 55015/CISPR 15
Immunity according to EN 61547
Lifetime: up to 100,000 h
Type of protection: IP20
Product family benefits
Versatile DALI window driver due to flexible output characteristic
Integrated DEXAL Bus power supply for sensors and wireless radios
Simplified luminaire design for wireless lighting control system and sensors
Locking and unlocking of luminaire/driver data
Advanced luminaire/driver data (power, energy, operating hours…) for analytics
D4i certified incl. Parts 250, 251, 252, 253
Easy and fast output current setting via NFC
Very high efficiency
High-quality dimming of 1…100 % by amplitude dimming
Versatile scope of application due to OSRAM DALI Technology:
Suitable for emergency Installations (acc. to EN 60598-2-22 and IEC 61347-2-13,appendix J) thanks to DC detection (0 Hz, pulsating DC), on/off switchable
Feedback of power consumption and operating hours (Fit for SMART GRID)
Suitable for buildings according to EPBD/BREEAM/LEED due to automatic Constant Lumen Output setting
Areas of application
DEXAL, easy connection to different partner BMS systems
Suitable for "Works with OSRAM DEXAL" partner components
Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
Suitable for use in luminaires with flexible current setting
Suitable for indoor SELV installations
Suitable for luminaires of protection classes I and II
Suitable for downlights, spotlights and LED panels
Installation via Cable Clamp Kit possible (depending on version of product)
Ecodesign regulation information:
Intended for use with LED modules.
The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.
Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.
Find technical data and additional assets in our datasheet
Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration: 24-05-2024
Primary Article Identifier: 4062172017961
Declaration No. in SCIP database: In work
Downloads
CAD data
Size: 468kb
CAD data
Size: 418kb
CAD data 2-dim
Size: 89kb
CAD data 3-dim
Size: 95kb
Certificates
Size: 246kb
Mandatory Publications
Size: 222kb
Mandatory Publications
Size: 225kb
User instruction
Size: 2Mb
