Product family features

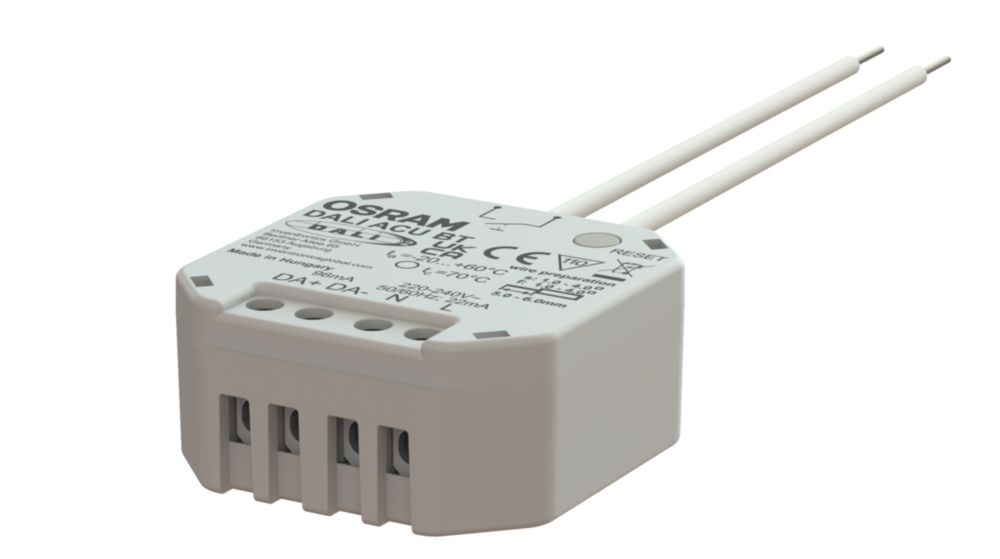

Compact light control with DALI interface
Smart phone connection via Bluetooth to control and configure
One DALI output channel (Broadcast or Groupcast)
Up to 32 DALI luminaires connectable
Supports up to 4 Inventronics DALI sensors and pushbutton couplers
Daylight-dependent regulation and presence-dependent control of light
Separate pushbutton input to operate via standard pushbutton
Supports DALI DT8 Tunable White driver
Outputs with electronical reversible overtemperature, short-circuit, overload protection
Length of the DALI control cable: up to 300 m
Length of the pushbutton cable: up to 50 m
Suitable for flush box mounting
Product family benefits
Control the light via Smartphone
Adjustment of all settings via smartphone
Plug and Play: Basic features usable without App
Simplified startup thanks to predefined operation modes
Intuitive manual dimming, switching and changing of colour temperature
Up to 4 groups separatly controllable
Adjustable Offset for different groups
Easy Scene creation via App
Scene-recall via Inventronics DALI PRO PB coupler possible
Firmware update over-the-air via Bluetooth possible
Integrated DALI supply
Control of standard white or Tunable White light acc. DALI device type 8 (DT8)*
Selected DALI parameters changeable via APP
Areas of application
Offices
Conference rooms
Training rooms
Classrooms
Corridors
Shop lighting
Equipment / Accessories
Free App for iOS and Android available at the app store
