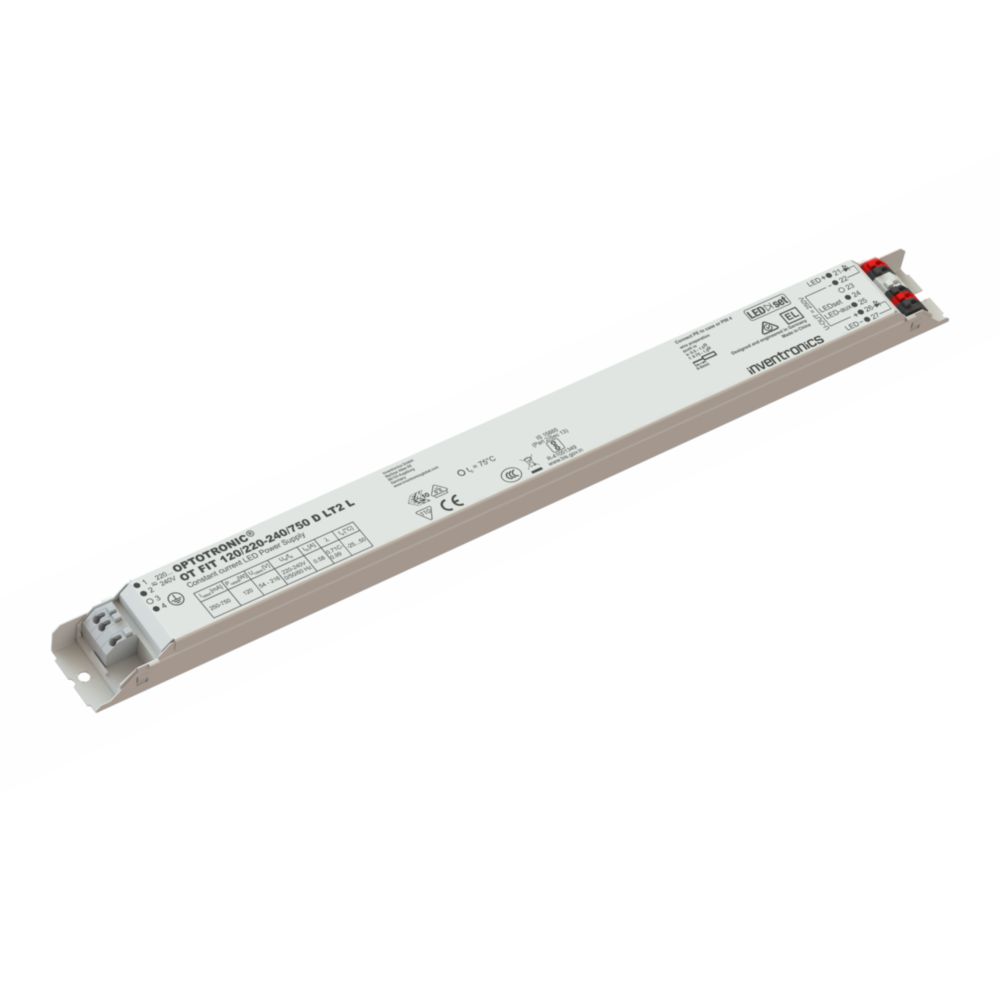

OT FIT 120/220-240/750 D LT2 L
Product family
Product family features
Line frequency: 0 Hz | 50 Hz | 60 Hz
Versatile scope of application due to output power range of up to 120 W
Supply voltage: 220…240 V
Available with output current range: up to 750 mA
Non-isolated drivers
Product family benefits
Flexible current setting (LEDset2)
Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
High quality of light thanks to low output ripple current
Very high efficiency
Fulfill safety requirement due to overload, overtemperature, Hot Plug protection
Areas of application
Linear lighting for office, education, industry, storage areas and retail
Installation in emergency lighting systems according to IEC 61347-2-13, appendix J
Suitable for installation in emergency lighting systems according to EN 60598-2-22
Suitable for luminaires of protection class I
Ecodesign regulation information:
Intended for use with LED modules.
The forward voltage of the LED light source shall be within the defined operating window of the control gear in all operating conditions including dimming if applicable.
Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.
Find technical data and additional assets in our datasheet
Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration: 26-09-2024
Primary Article Identifier: 4052899497900
Declaration No. in SCIP database: In work
Downloads
CAD data
Size: 586kb
CAD data
Size: 520kb
CAD data 2-dim
Size: 93kb
CAD data 3-dim
Size: 106kb
Certificates
Size: 441kb
Mandatory Publications
Size: 136kb
Mandatory Publications
Size: 147kb
User instruction
Size: 2Mb
