Product family features
Retrofit for DIN rail to DIN EN 60417
Operating frequency: 50…60 Hz
Maximum continuous load: 16 A
Limitation time: 70 ms
Number of switching cycles: up to 10,000

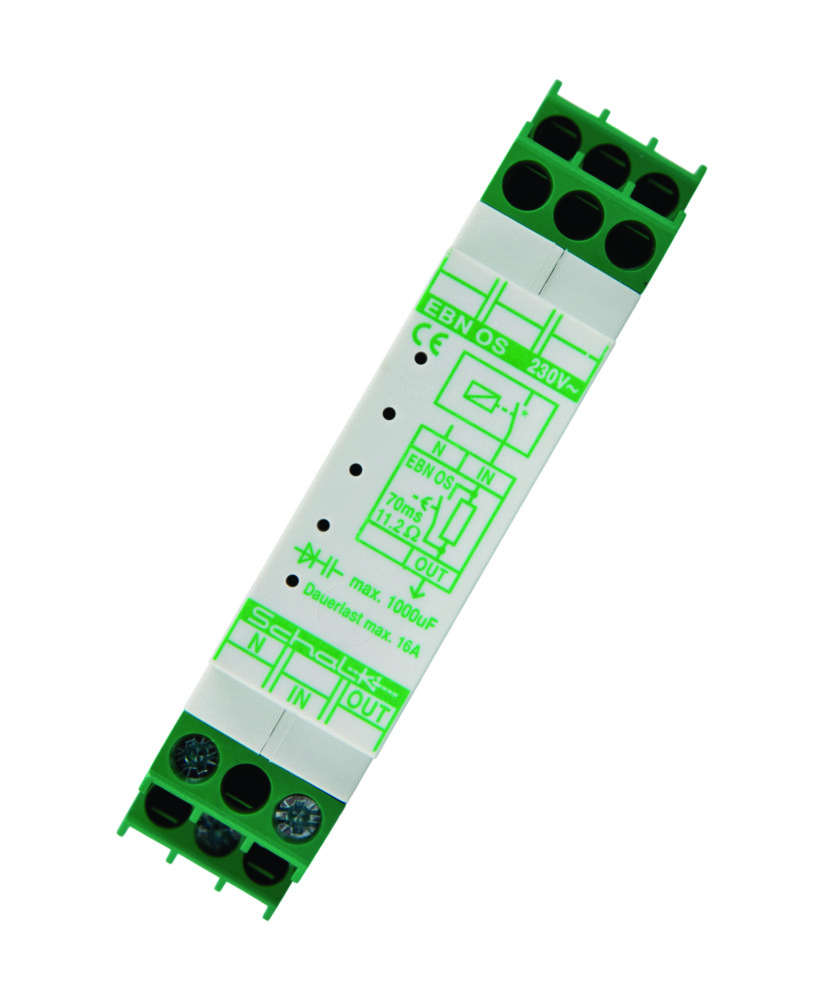

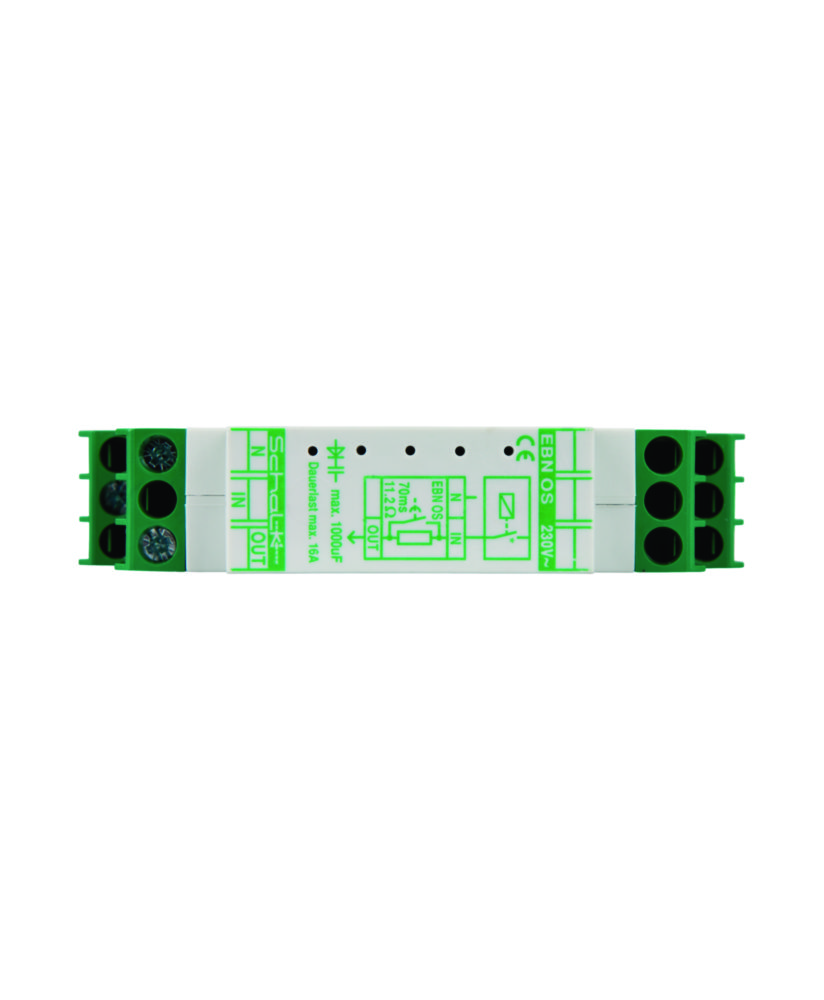

EBN-OS /230
Product family benefits
Increases maximum number of ECG per automatic cutout by factor 2.5
Flexible use depending on the size of the installation
Simple installation
Areas of application
Suitable for all POWERTRONIC and selected OPTOTRONIC control gears
Ecodesign regulation information:
Separate control gear and light sources must be disposed of at certified disposal companies in accordance with Directive 2012/19/EU (WEEE) in the EU and with Waste Electrical and Electronic Equipment (WEEE) Regulations 2013 in the UK. For this purpose, collection points for recycling centres and take-back systems (CRSO) are available from retailers or private disposal companies, which accept separate control gear and light sources free of charge. In this way, raw materials are conserved and materials are recycled.
Find technical data and additional assets in our datasheet
Environmental information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Date of Declaration:
26-02-2025
Declaration No. in SCIP database:
In work
Product code:
4006584548019
