Product family features
Interconnection of up to 4 DALI Professional control units
Configuration via LAN/WLAN/USB
RGB color sequences
Time-of-day-dependent color temperature adjustment (human centric lighting)

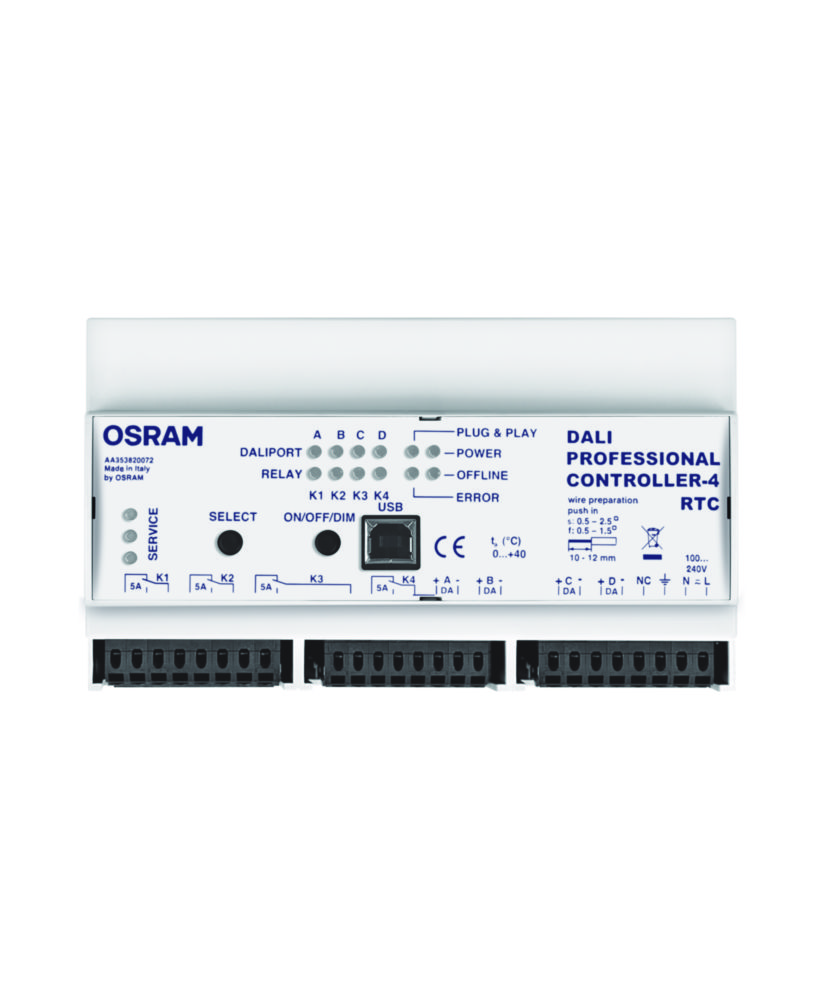

Controller for 4 DALI lines
Up to 50 pushbutton/sensor couplers can be integrated
Integrated DALI supply
4 freely programmable switchover relays; load contact: 4x 5 A
Daylight-dependent and/or presence-dependent or manual control
Up to 4 x 16 groups can be controlled
Integrated clock for event control
Weekly scheduler
Connection via push-in terminals
Control of lighting scenes and sequences (recall/store)

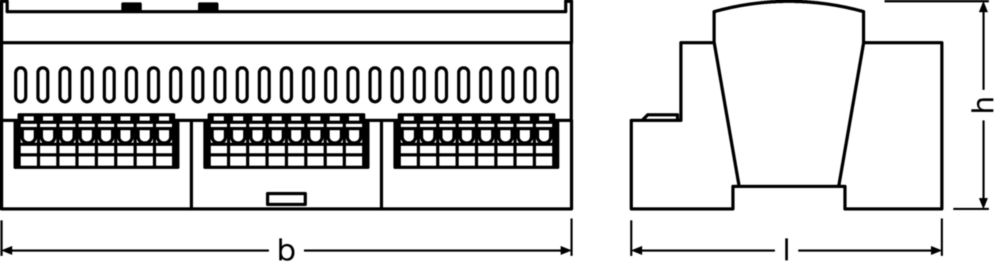

Housing for series installation
Length of the DALI control cable: up to 300 m
Product family benefits
Easy and intuitive control via App
Control up to 1024 DALI ECGs via LAN interconnectivity
Plug and Play preconfigured for instant use without any startup procedure
Mains voltage interruption buffer battery
All the luminaires in the system can be dimmed or switched
Simple creation of scenes and sequences
Switching and dimming of up to 256 DALI ECGs per DALI Professional control unit
A setpoint for daylight-dependent control can be stored by double clicking
Sensor integration in DALI
Remote access/remote maintenance
Areas of application
Room control, floor control, daylight-dependent control
Connection of light and presence sensors in DALI systems
Conference rooms
Offices: Individual and group workplaces
Production and assembly facilities
Suitable for indoor applications
Large luminaire groups
Industry
Corridors
Strip lighting
Logistic centers
Classrooms
Sports halls
Training rooms
Equipment / Accessories
Free smartphone App for iOS and Android
Suitable for up to 256 electronic control gears with DALI interfaces
Graphic configuration software with Windows user interface
